2026 Horizon FHS 25K 102 in GN 40 ft
Get in Touch
Description

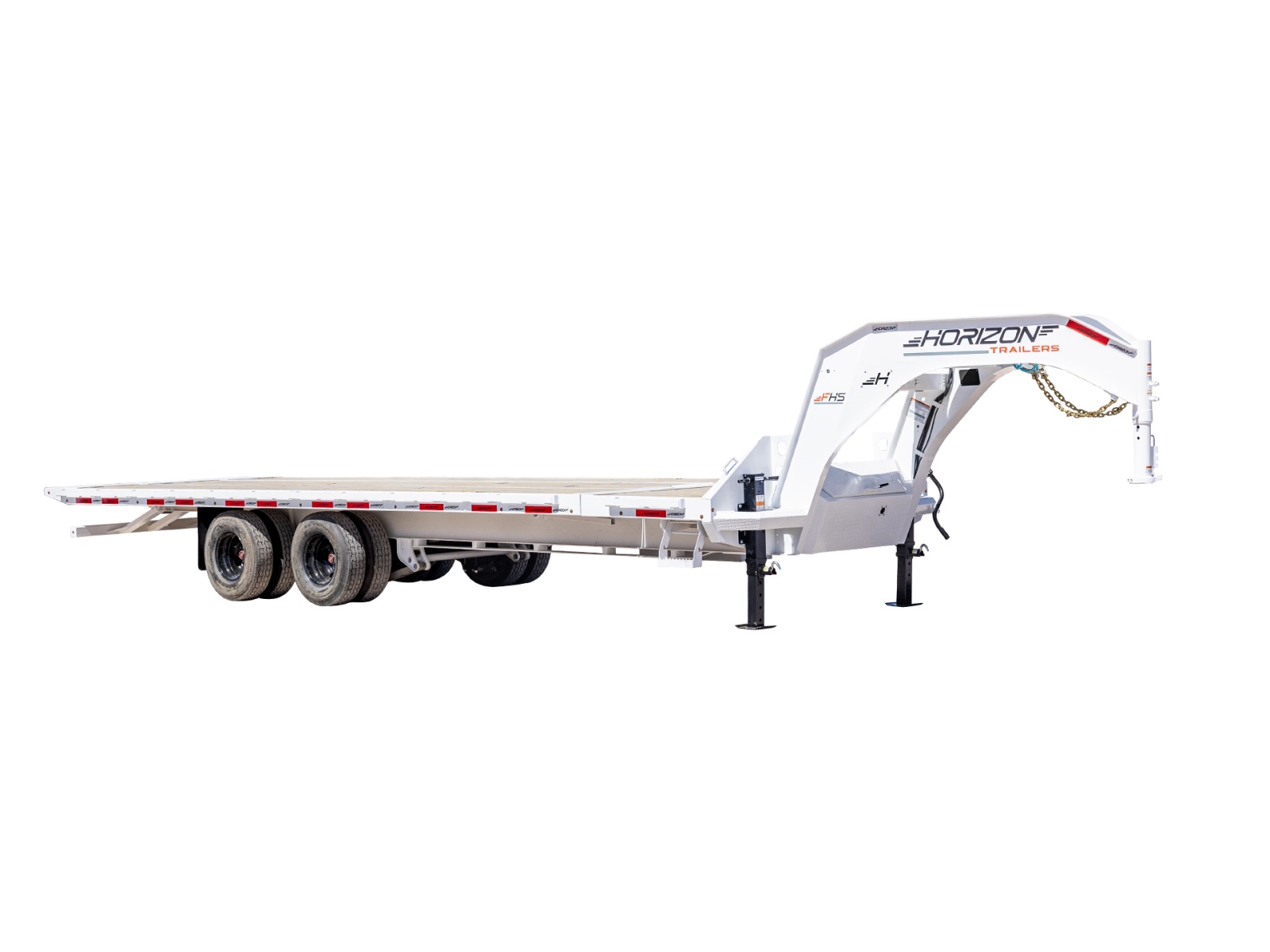

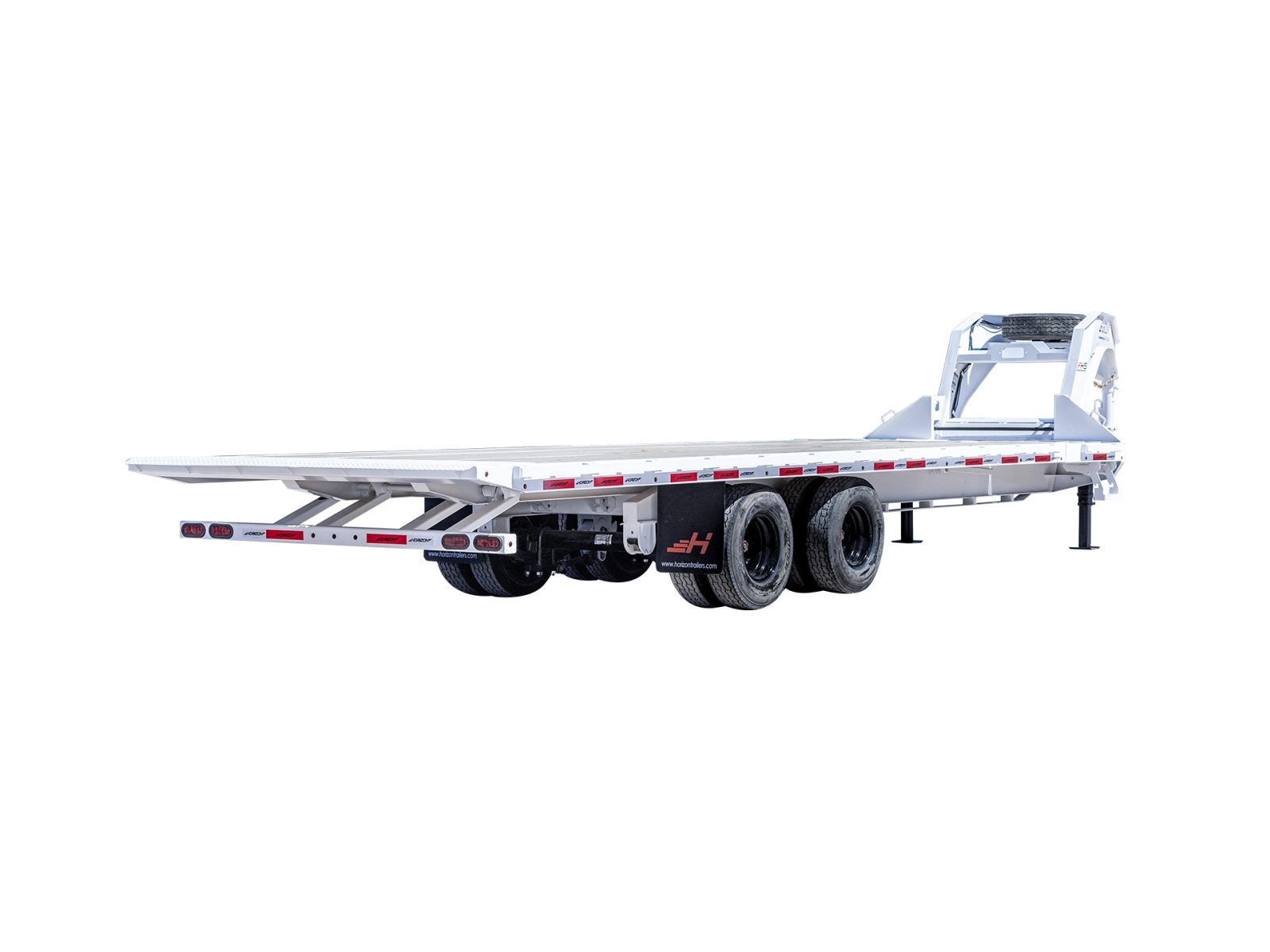

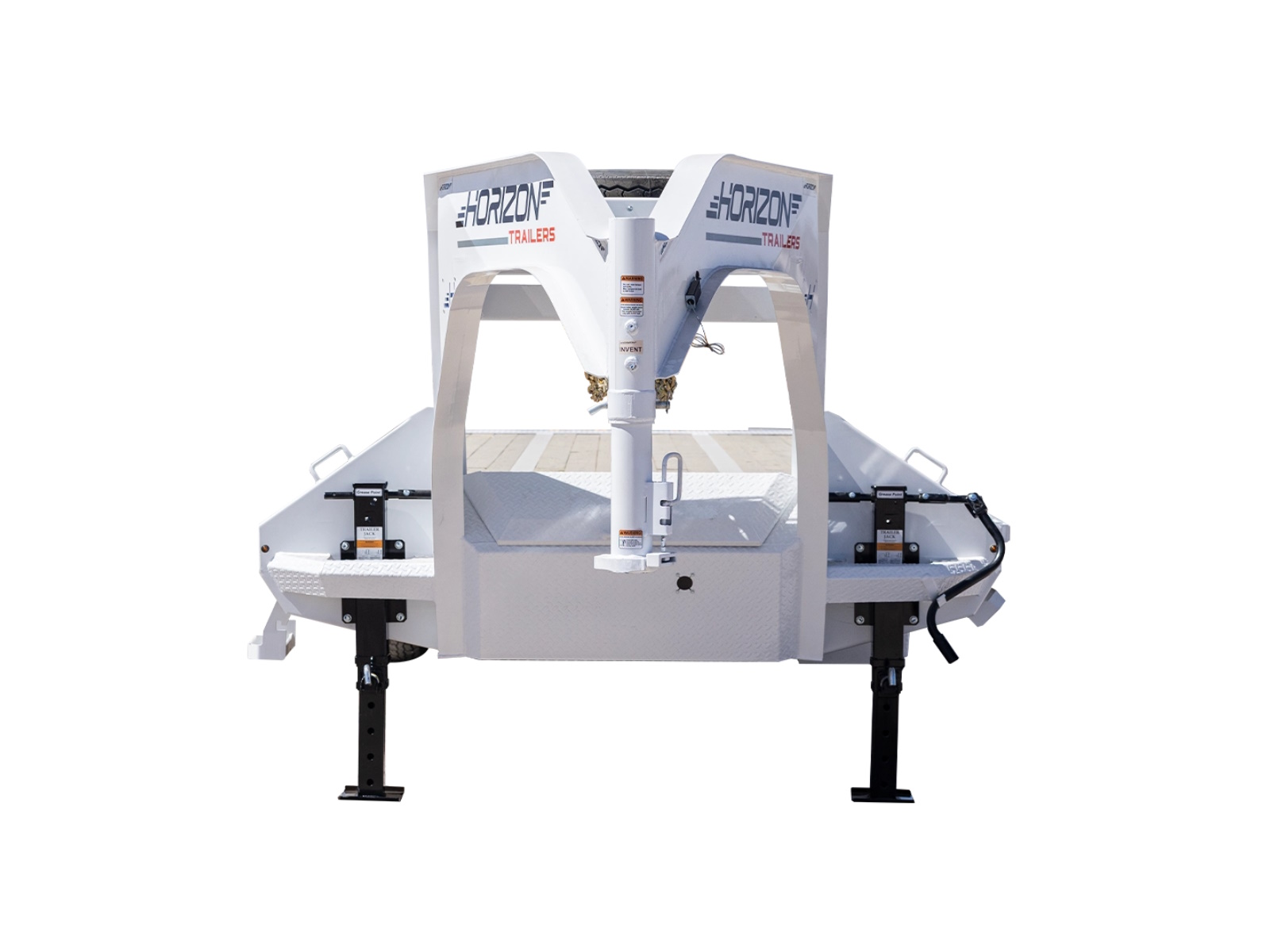

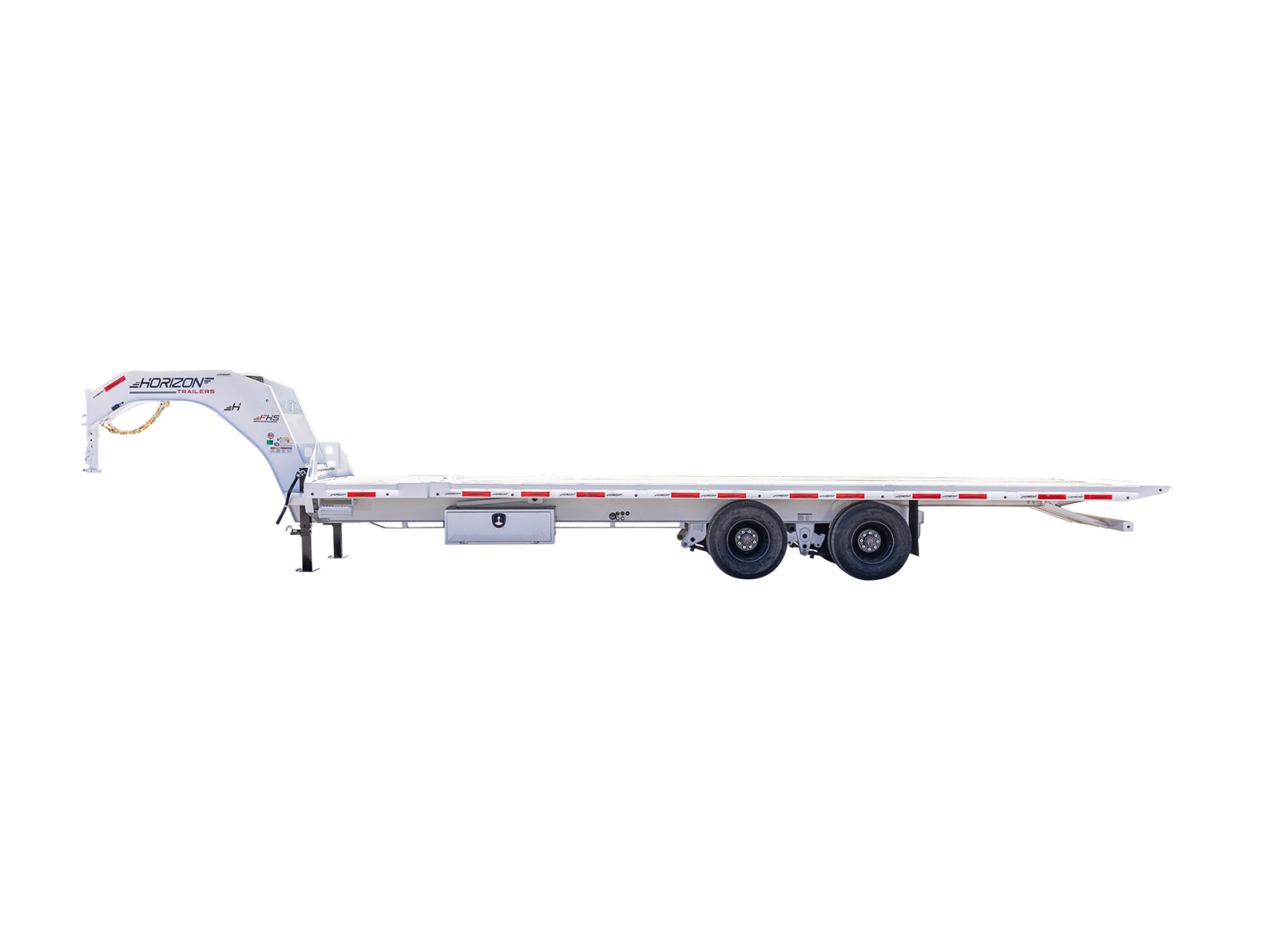

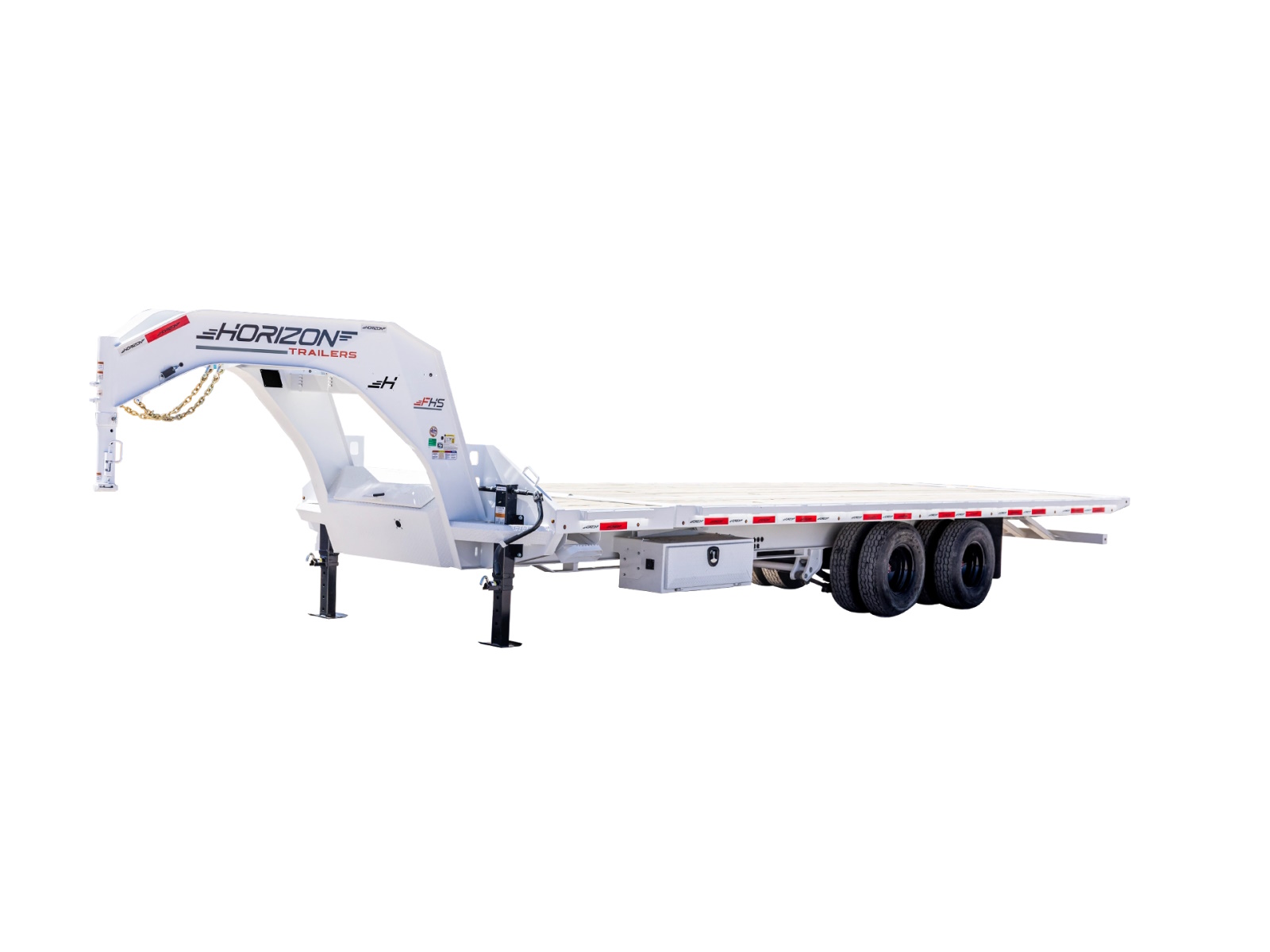

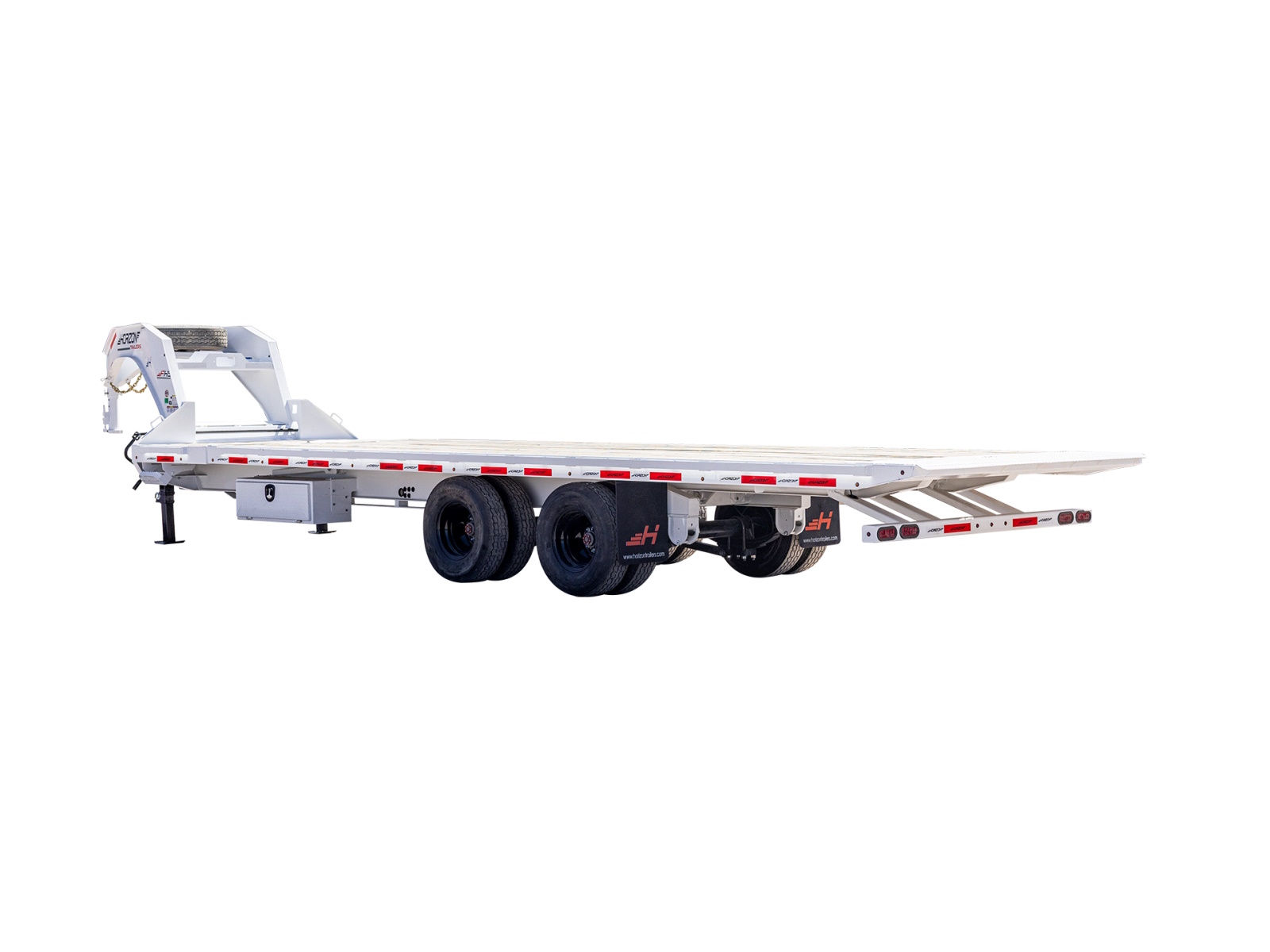

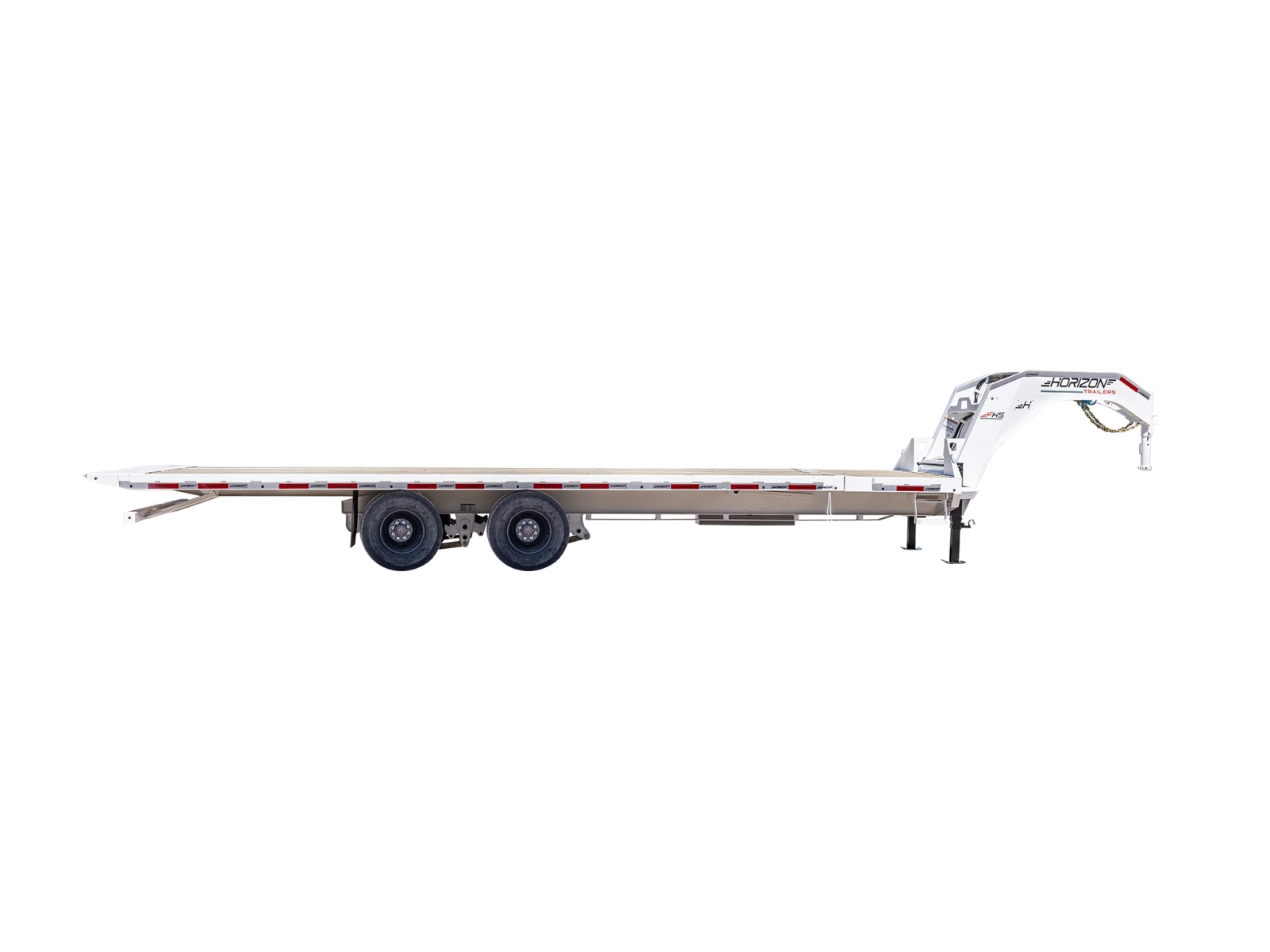

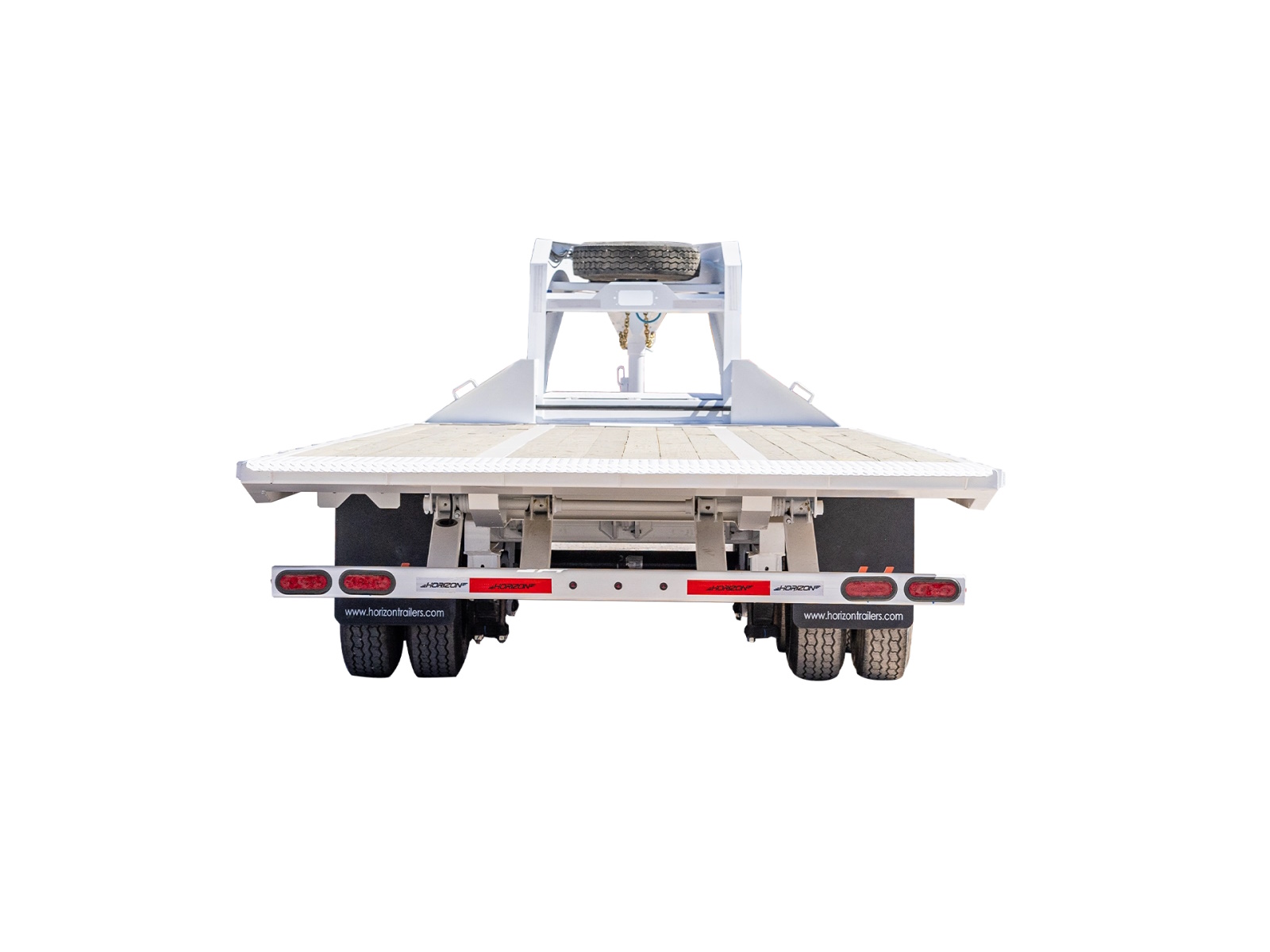

2026 Horizon FHS 25K 102 in GN 40 ft
The FHS 25K 102" GN Split Tilt Flatdeck is a durable, high-performance trailer designed for heavy-duty transport. Featuring a 25,000 lbs GVWR, multiple length options, and a powerful hydraulic tilt deck, this trailer ensures smooth loading and hauling. Its robust construction and versatile features make it ideal for demanding tasks.
Designed for Maximum Durability
HEAVY-DUTY PERFORMANCE
The FHS 25K 102" GN Split Tilt Flatdeck provides superior hauling capacity with a 25,000 lbs GVWR. Its 12" I-beam frame, dual axles, and heavy-duty suspension system ensure reliable performance. Available in lengths from 28' to 40', this trailer is perfect for handling demanding loads with ease and precision.
Efficient Hydraulic Lift Mechanism
ADVANCED HYDRAULIC TILT SYSTEM
Equipped with a 24' hydraulic tilt deck, the FHS 25K 102" GN trailer offers efficient loading and unloading. The 2-button hydraulic system, along with a Tuff Wireless controller, provides smooth, precise operation. The robust lift cylinder supports a 20,000 lbs load, ensuring superior performance for various heavy-duty tasks.
Multiple Lengths and Customization
VERSATILE DESIGN OPTIONS
Choose from 28' to 40' length options for a tailored hauling experience. The FHS 25K 102" GN Split Tilt Flatdeck is available in various colors like Military Green, Desert Tan, and Flame Orange. It offers flexibility for different types of cargo and is built to meet a wide range of transport needs.
Features may include:
Highlights
- Bridged 12" I-Beam (19 lbs/ft)
- Neckboss 12" Engineered I-Beam
- Diamond Mesh Wire Floor Storage
- Weld On Spare Tire Mount
- 2" x 6" x 7ga." Tubing Bed Frame
- SLIDE IN SIDE STEP ON BOTH SIDES
- 24' Tilt Deck
Options
Base Model
- FHS2GN28102-25KFHS GN 28' x 102" 25K Tandem Axle Split Tilt Flatdeck Trailer
- FHS2GN30102-25KFHS GN 30' x 102" 25K Tandem Axle Split Tilt Flatdeck Trailer
- FHS2GN32102-25KFHS GN 32' x 102" 25K Tandem Axle Split Tilt Flatdeck Trailer
- FHS2GN34102-25KFHS GN 34' x 102" 25K Tandem Axle Split Tilt Flatdeck Trailer
- FHS2GN36102-25KFHS GN 36' x 102" 25K Tandem Axle Split Tilt Flatdeck Trailer
- FHS2GN38102-25KFHS GN 38' x 102" 25K Tandem Axle Split Tilt Flatdeck Trailer
- FHS2GN40102-25KFHS GN 40' x 102" 40K Tandem Axle Split Tilt Flatdeck Trailer
Tongue
- FHS-10412k Ram 2 Speed Jacks$273.00 (USD)
- FHS-10217.5k Jost 2 Speed Jacks$1,163.50 (USD)
- FHS-10612k Hydraulic Jacks$2,665.00 (USD)
- FHS-201Locker Style Toolbox$1,449.50 (USD)
- FHS-3026" Gn Riser Increase$149.50 (USD)
- FHS-301Deck on the Neck (Flip Down Spare Tire Mount Included)$2,457.00 (USD)
- 508-0052 - D-Rings Welded Across Deck On The Neck (1/2" - 4,000 lbs)$41.60 (USD)
- 508-0064 - D-Rings Welded Across Deck On The Neck (1/2" - 4,000 lbs)$84.50 (USD)
- 503-007Shocker Hitch 2,5/16" Gn Coupler (30,000 lbs)$1,638.00 (USD)
Chassis
- FHS-631Bridged 12" I-Beam (22 lbs/ft) Frame Upgrade$20.80 (USD) per linear ft
- FHS-20320' - 44' Deck 1 - Side Mount Undercarriage Toolbox (44"L x 17"W x 14"H)$481.00 (USD)
- FHS-21420' - 44' Deck 2 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H)$955.50 (USD)
- FHS-21530' - 44' Deck 3 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H)$1,436.50 (USD)
- FHS-21630' - 44' Deck 4 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H)$1,911.00 (USD)
- FHS-2041 - Side Mount Undercarriage Dunnage Rack (44"L x 22"W x 14"H)$481.00 (USD)
- FHS-2181 - Side Mount Undercarriage Dunnage Rack (9'L x 22"W x 14"H)$754.00 (USD)
Deck
- FHS-40212" Crossmember Spacing$15.60 (USD) per linear ft
- 506-004Deck Sides Blackwood "Classic" Rubber Infused Lumber$19.50 (USD) per linear ft
- 506-005Full Deck Blackwood "Classic" Rubber Infused Lumber$37.70 (USD) per linear ft
- FHS-411Ratchet Slide Track Left Side$20.80 (USD) per linear ft
- FHS-412Ratchet Slide Track Right Side$20.80 (USD) per linear ft
- 507-0076 - 4" Sliding Ratchets$572.00 (USD)
- 507-0088 - 4" Sliding Ratchets$767.00 (USD)
- 507-00910 - 4" Sliding Ratchets$955.50 (USD)
- 507-01012 - 4" Sliding Ratchets$1,144.00 (USD)
- 507-0116 - Weld On 4" Ratchets Right Side$572.00 (USD)
- 507-0128 - Weld On 4" Ratchets Right Side$767.00 (USD)
- 507-01310 - Weld On 4" Ratchets Right Side$955.50 (USD)
- 507-01412 - Weld On 4" Ratchets Right Side$1,144.00 (USD)
- 507-0044" x 30' Kinedyne Winch Strap with Flat Hook (5,400 lbs)$54.60 (USD) each
- 508-0014 Additional D-Rings Welded Across Deck (1/2" - 4,000 lbs)$84.50 (USD)
- 508-0026 Additional D-Rings Welded Across Deck (1/2" - 4,000 lbs)$123.50 (USD)
- 508-0038 Additional D-Rings Welded Across Deck (1/2" - 4,000 lbs)$162.50 (USD)
Lift System
- Lift system
- 509-017Tuff Wireless 2 Button Remote (Hoist - Hydraulic Jacks)$708.50 (USD)
- 509-020Tuff Wireless 4 Button Remote (Hoist - Winch)$858.00 (USD)
- 8 button remote option*6 buttons in use only*
- 509-026Tuff Wireless 8 Button Remote (Hoist - Hydraulic Jacks - Winch)$1,254.50 (USD)
- 504-01213.5k Steel Cable Winchmax Winch$1,774.50 (USD)
- 504-01313.5k Synthetic Rope Winchmax Winch$2,047.50 (USD)
- 504-01417.5k Steel Cable Winchmax Winch$2,255.50 (USD)
- 504-01517.5k Synthetic Rope Winchmax Winch$2,938.00 (USD)
- 504-01620k Steel Cable Winchmax Winch$2,834.00 (USD)
- 504-01720k Synthetic Rope Winchmax Winch$3,445.00 (USD)
Running Gear
- Brakes upgrade option
- 501-2012 - 10k Elec / Hydraulic Disc Brake Dual Oil Bath Spring Axles w/ Hydrastar CAM$5,187.00 (USD)
- Hutchens suspension upgrade/ axle options
- 501-200Standard Axles w/ Hutchens Suspension$1,638.00 (USD)
- 501-2022 - 10k Elec / Hydraulic Disc Brake Dual Oil Bath Axles w/ Hydrastar CAM w/ Hutchens Suspension$6,825.00 (USD)
- Ridewell air ride suspension upgrade/ axle options
- 500-210Standard Axles w/ Air Ride Suspension$9,964.50 (USD)
- 500-2122 - 10k Elec / Hydraulic Disc Brake Dual Oil Bath Axles w/ Hydrastar CAM w/ Air Ride Suspension$15,151.50 (USD)
- Lift axle ridewell air ride upgrade/ axles options
- 500-211Standard Axles w/ Air Ride Suspension w/ 1 Lift Axle$10,920.00 (USD)
- 500-2132 - 10k Elec / Hydraulic Disc Brake Dual Oil Bath Axles w/ Hydrastar CAM w/ Air Ride Suspension w/ 1 Lift Axle$16,107.00 (USD)
- Tire upgrade options
- 501-0098 - ST235/85R16 14 Ply Tires Duals (3,860 lbs)$435.50 (USD)
- 501-0108 - ST235/75R17.5 18 Ply Tires Duals (4,960 lbs)$1,800.50 (USD)
- Aluminium wheels options(outer wheels only)
- 501-0114 - Aluminum Rims w/ ST235/80R16 10 Ply Tires Duals (3,080 lbs)$1,365.00 (USD)
- 501-0124 - Aluminum Rims w/ ST235/85R16 14 Ply Tires Duals (3,860 lbs)$2,392.00 (USD)
- Spare tire options
- 501-108ST235/80R16 10 Ply Tire (3,080 lbs)$182.00 (USD)
- 501-109ST235/85R16 14 Ply Tire (3,860 lbs)$240.50 (USD)
- 501-110Aluminum Rim w/ ST235/80R16 10 Ply Tire Dual (3,080 lbs)$422.50 (USD)
- 501-111Aluminum Rim w/ ST235/85R16 14 Ply Tire Dual (3,860 lbs)$481.00 (USD)
- 501-112ST235/75R17.5 18 Ply Tire Dual (4,960 lbs)$409.50 (USD)
Electrical and Lighting
- 505-00110 Watt Solar Panel$481.00 (USD)
- FHS-3052 - Cargo Lights Mounted On Riser$546.00 (USD)
Finish
- FHS-81520ft & Up Zinc Primer Undercoat$1,365.00 (USD)
- FHS-821Side Mount Undercarriage Toolboxes Painted Black$273.00 (USD) per toolbox
- FHS-823Side Mount Undercarriage Dunnage Racks Painted Black$344.50 (USD) per rack
Info
Industry
Trailer
Make
Horizon
Model
FHS 25K 102 in GN
Trim
40 ft
Year
2026
MSRP
N/A
Category
Flatbed Trailer
Subcategory
Gooseneck
Specs
GVWR
25,000 lbs | GAWR: 10,000 lbs
Width
Deck: 102 in
Frame
Main Frame: Bridged 12 in I-Beam (19 lbs/ft) | Deck: 2 in x 6 in x 7ga. Tubing Bed Frame
Suspension
Spring | Bolt Pattern: 8 On 6.5 in
Tires
Type: Radial Tires | Size: ST235/80R16, Dual | Ply: 10 | Rating: 3,080 lbs
Tongue
Type: Neckboss 12 in Engineered I-Beam | Spare: Weld On Spare Tire Mount | Storage Behind Neck: Chain Rack & Storage Box / Winch Ready
Finish
Paint Type: Powdercoat | Prep: Steel Grit Blasted | Colors: Military Green Desert Tan Flame Orange Midnight Black Spectra Yellow Blue Horizon Lime Green Ash Grey True Red Pearl White Cloud Grey Navy Blue
Notes
Jack: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs) | Toolbox: Mega Lockable Toolbox | Safety: 3/8 in Grade 70 Safety Chain w/Clevis Hook (2 each) | Left Side: Lockable Toolbox (Houses Batteries And Pump) | Rear of Deck: 24 ft Hydraulic Tilt Deck | Torque Tube 30 ft and Up Only: 4,1/2 in Tube | Winch Plate: Winch Plate On Deck | Hydraulic System: 2 Button Hydraulic - Power Up / Power Down | Pump: KTI 12V Hydraulic Pump | Controller: 14 ft Control Cable | Wireless Controller: Tuff Wireless 2 Button Wireless Remote | Safety: 3M Dot Compliant Reflective Tape
Cylinder
Lift Cylinder: Hoist w/ 6 in x 21 in Single Push Cylinder (20,000 lbs)
Battery
Battery: 2 - Interstate 27 Deep Cycle Batteries | Wiring Harness: All-Weather Wiring Harness (7-Way RV) | Frame Wiring: Double Insulated Wiring Harness
Top Rail
Rub Rail: 2 in x 3/8 in | Stake Pockets: 1,5/8 in x 3,5/8 in (ID) Stake Pockets (Spaced At 24 in) | Spools: 2 in x 10ga. Pipe Spools (Spaced At 24 in) | Sides: Slide In Side Step On Both Sides
Coupler
Adjustable 2-5/16 in Gn Coupler (30,000 lbs)
Height
Deck: 38 in | Tongue: 70 in (From Underneath Neck)
Crossmembers
3 in Channel (3.50 lbs/ft) 16 in Spacing
Length
40 ft | Tongue: 98 in (From Behind Riser)
Axles
2 Axles | Type: 10k Electric Brake Auto Adjust Dual Oil Bath Spring Axles
Wheels
16 in Black Mod Wheels
Safety Chains
3/8 in Grade 70 Safety Chain w/Clevis Hook (2 each)
Floor
Pine Lumber Floor
Lights
DOT Approved Tecniq LED Lights
Warranty
Axle: 5 Year Spring Axle Warranty | Trailer: 3 Year Frame / 1 Year Parts Warranty
