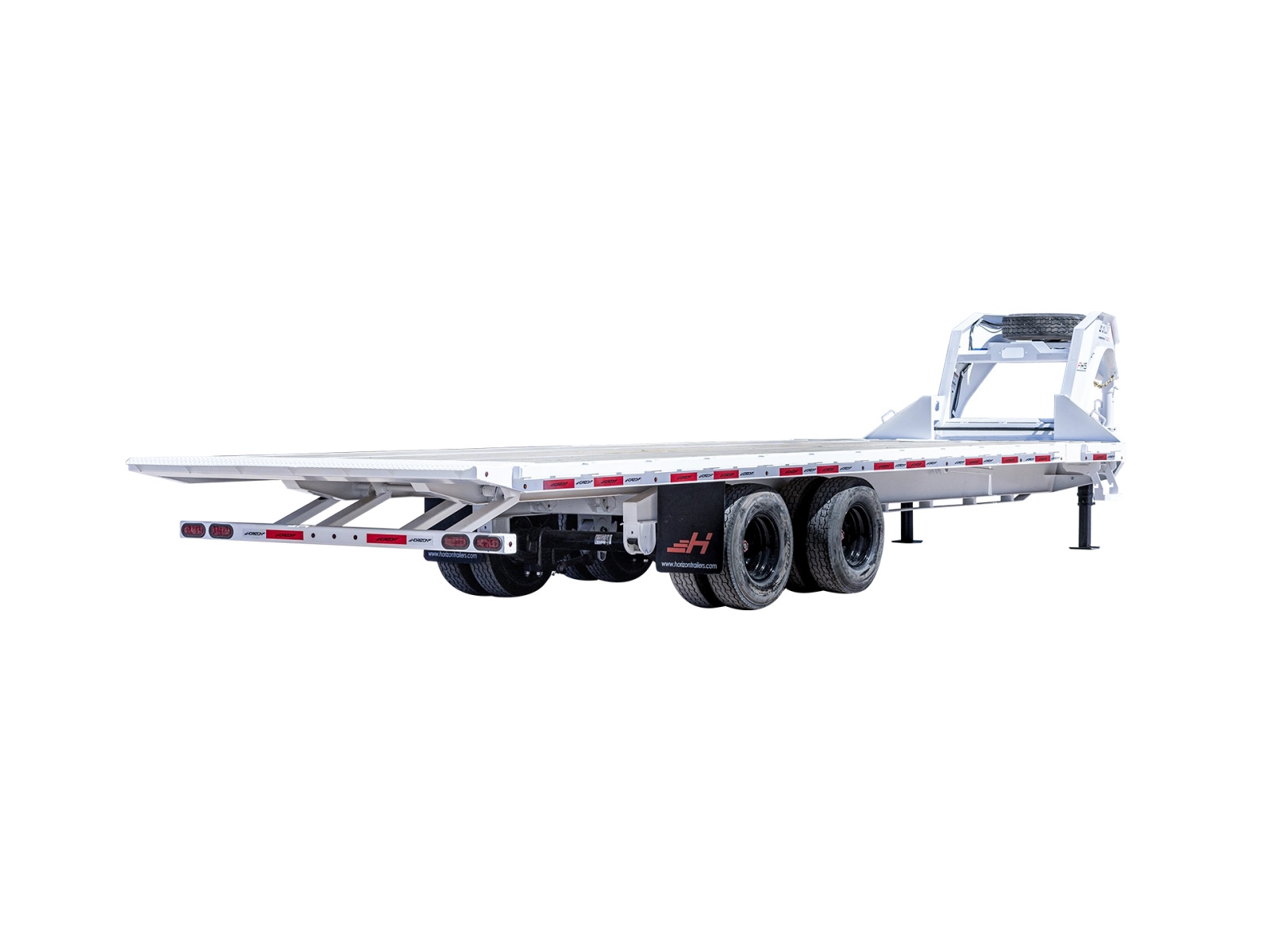

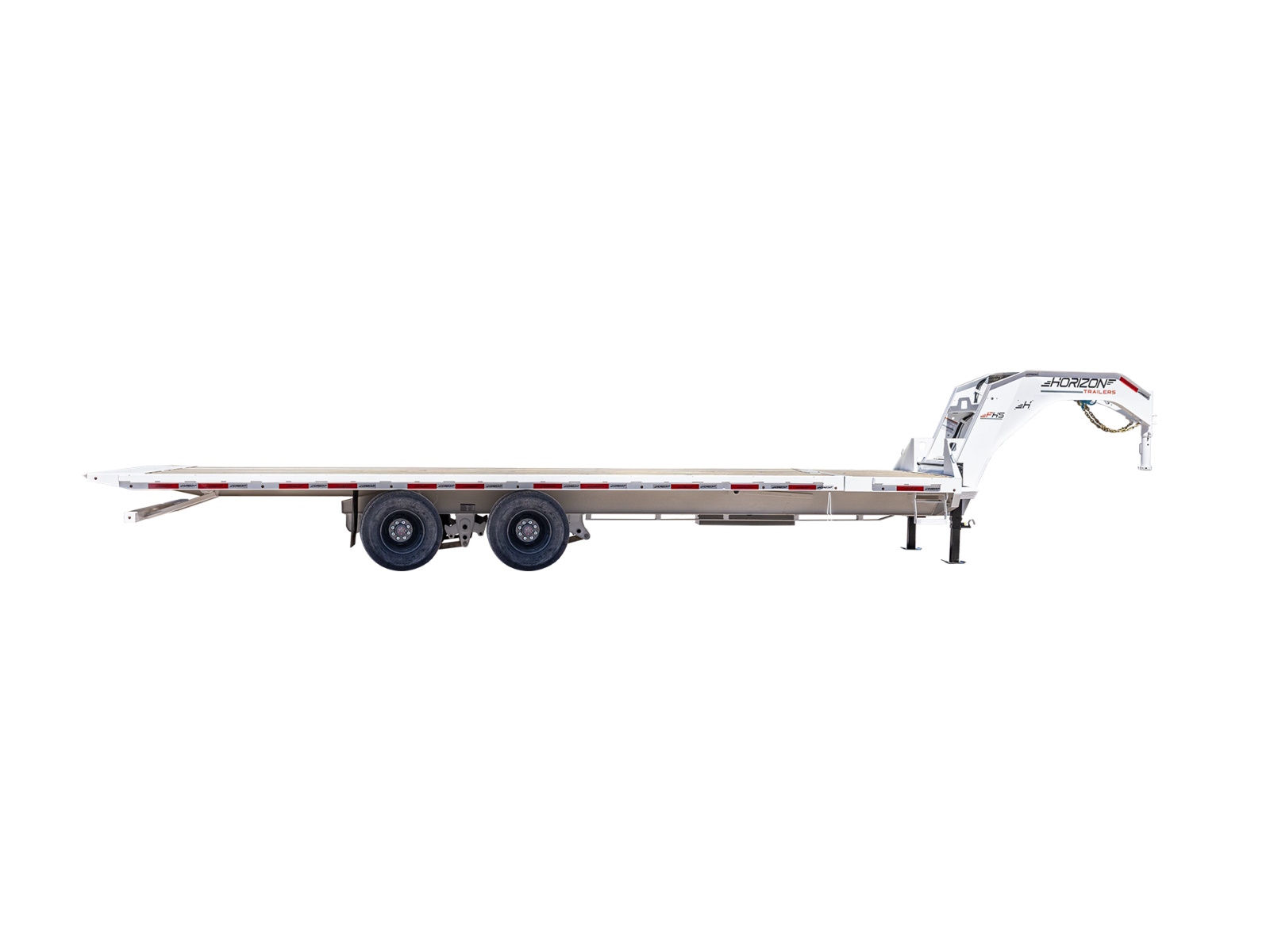

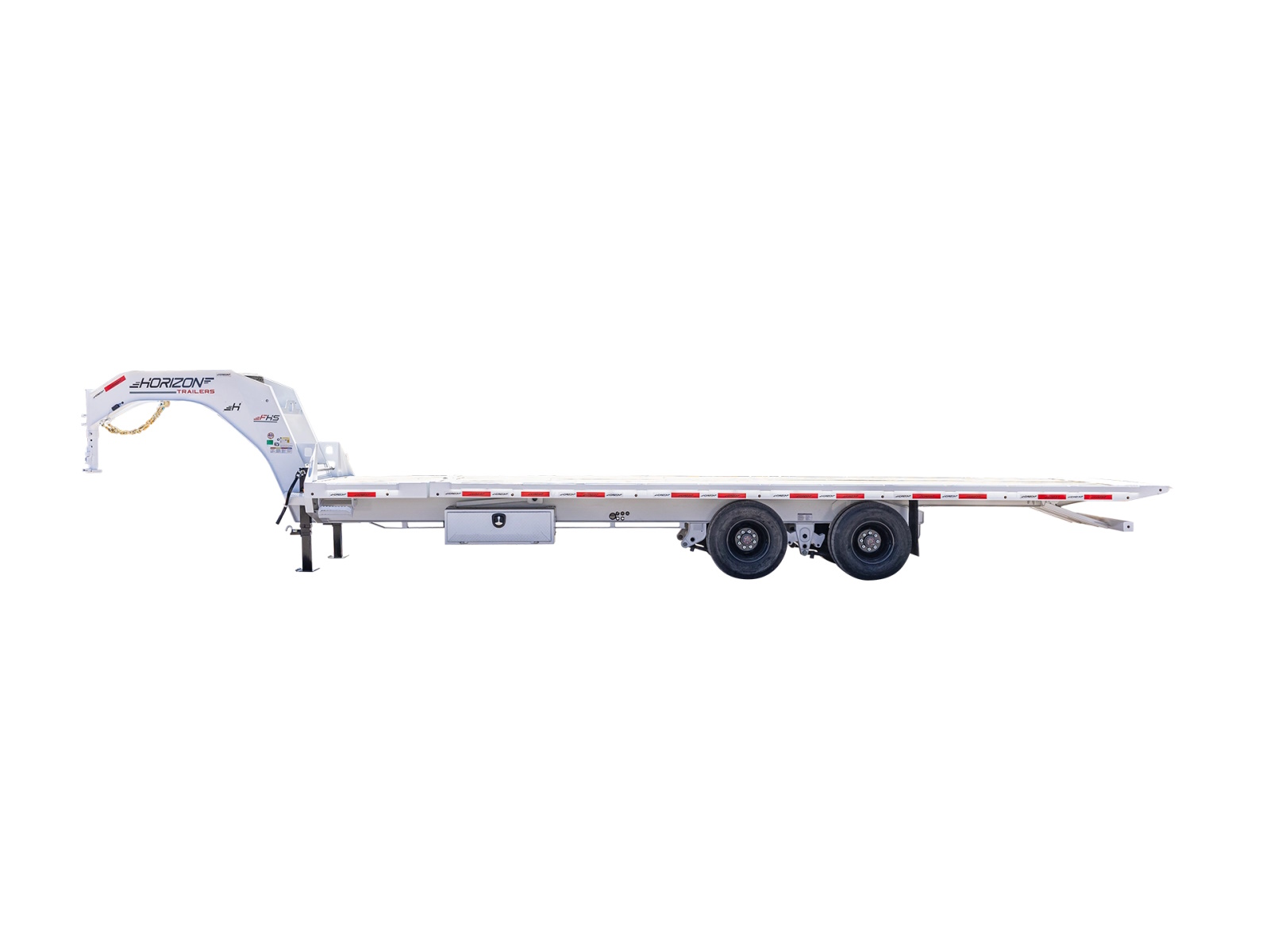

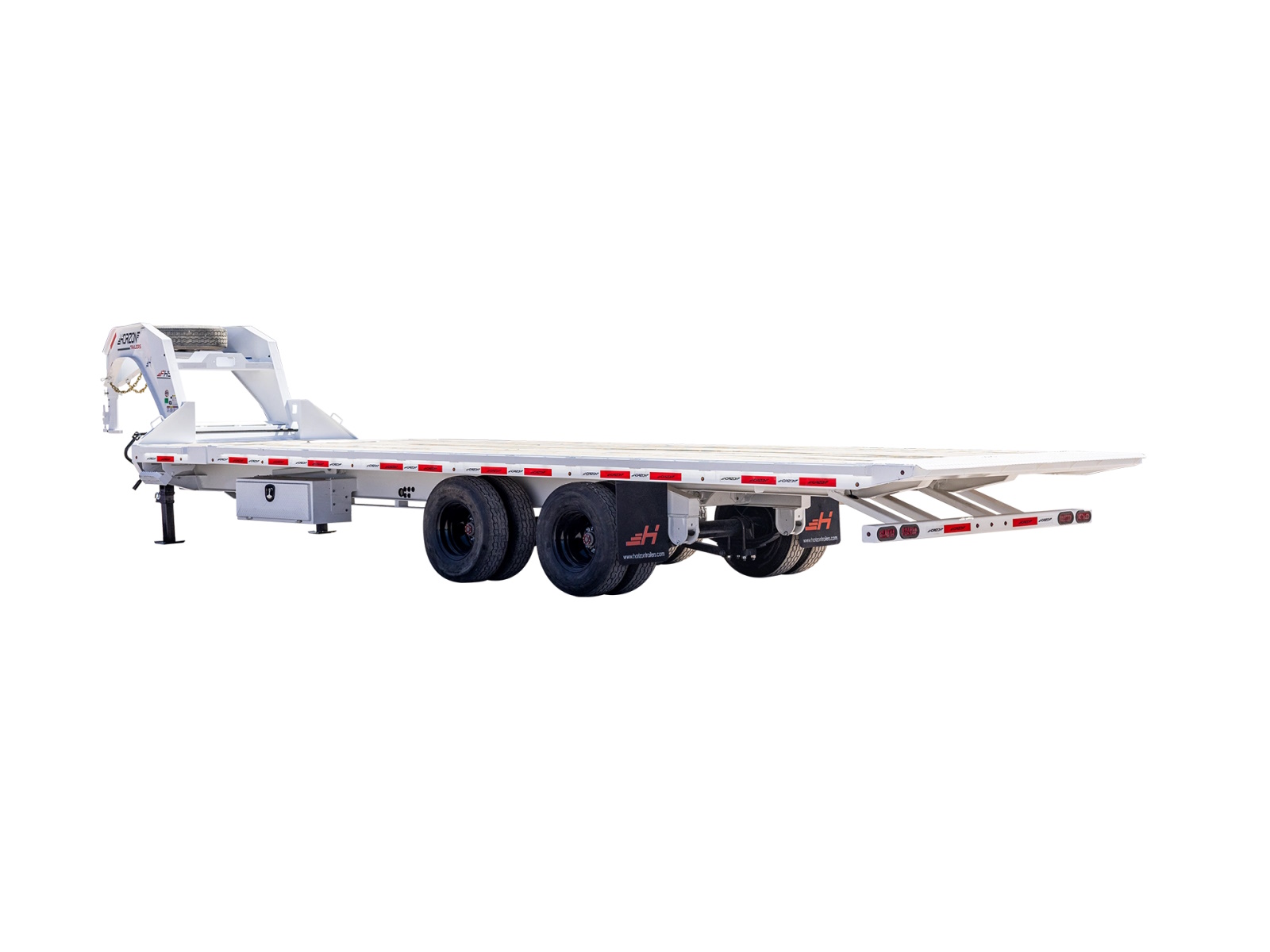

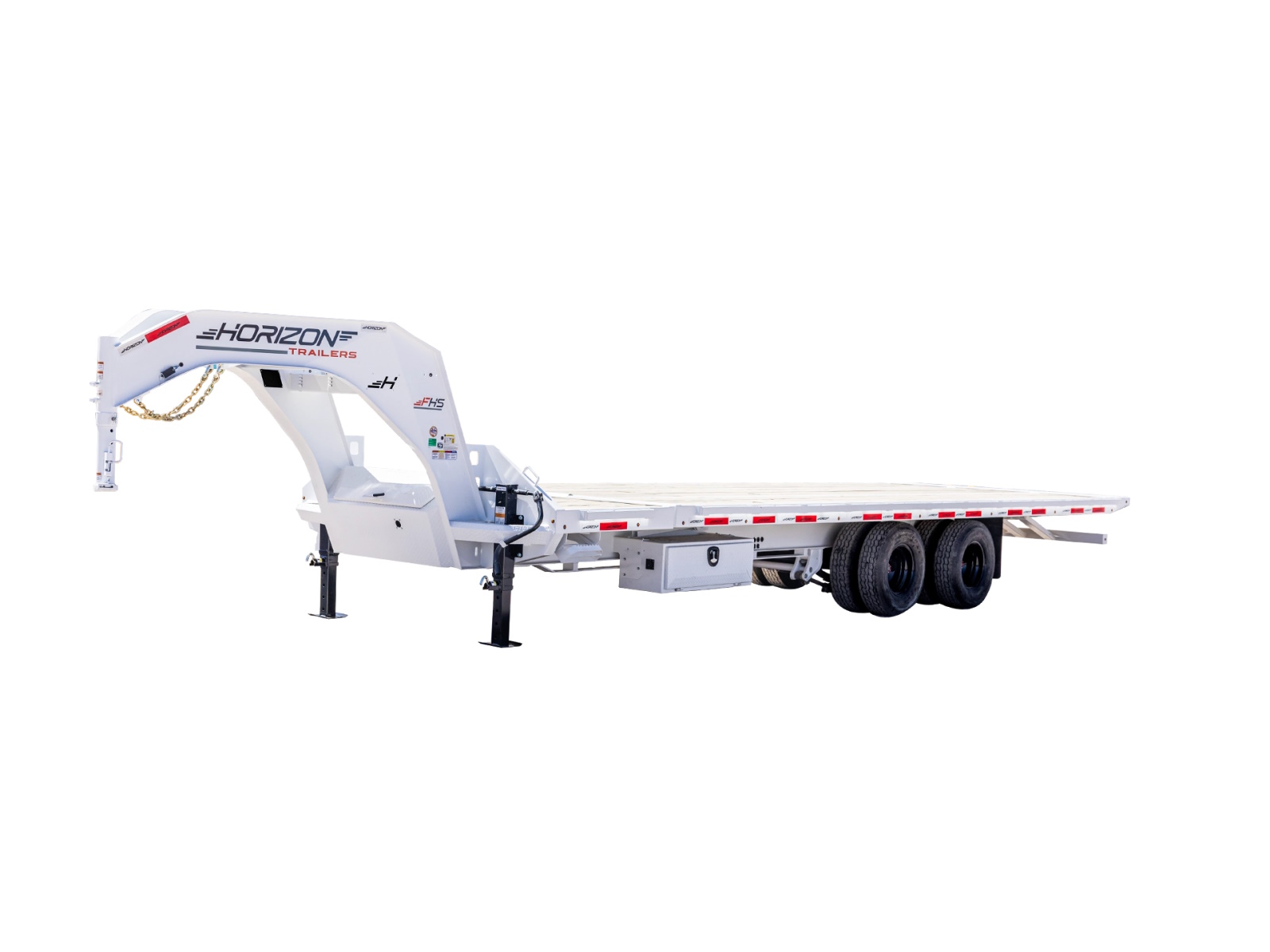

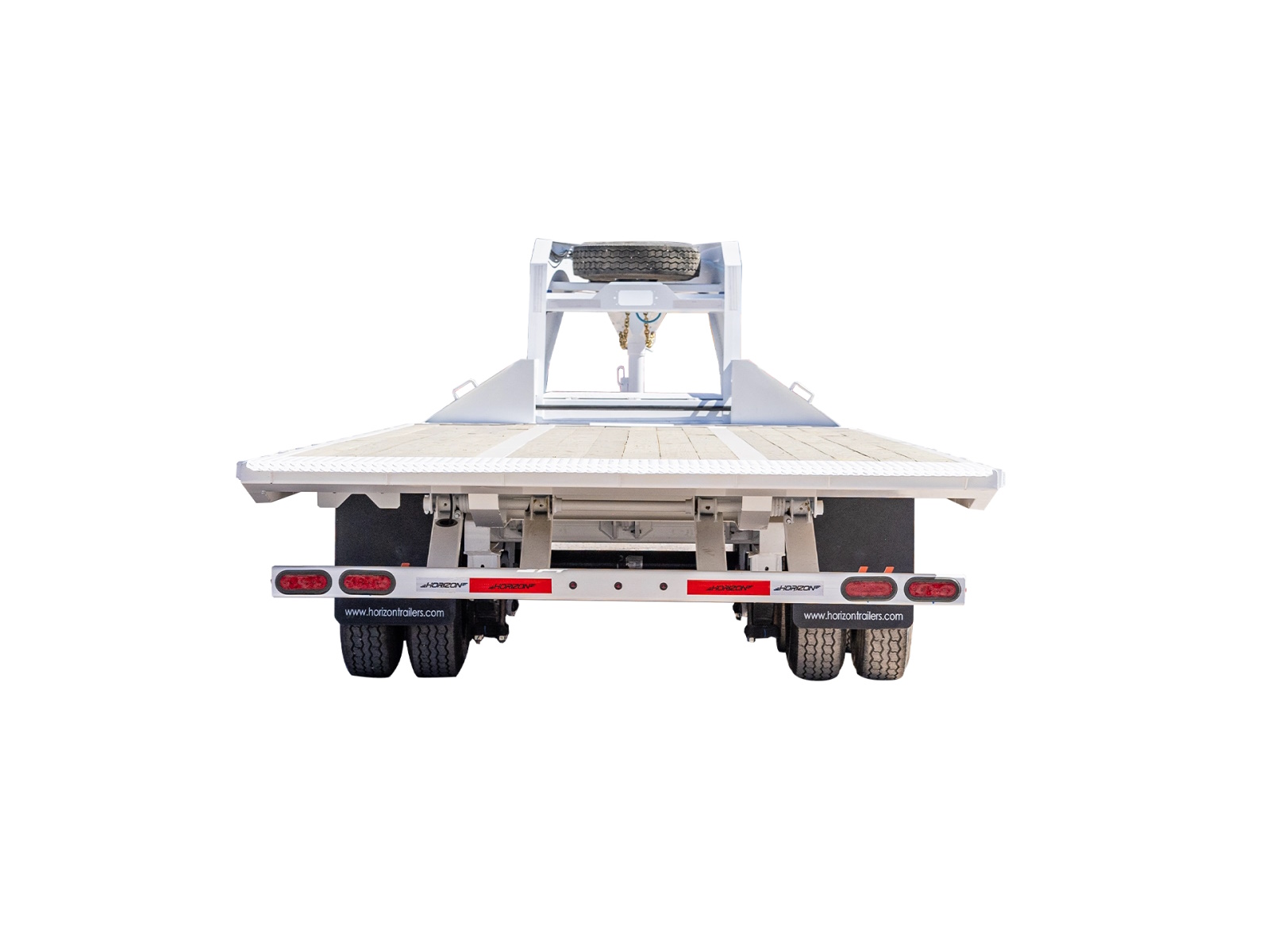

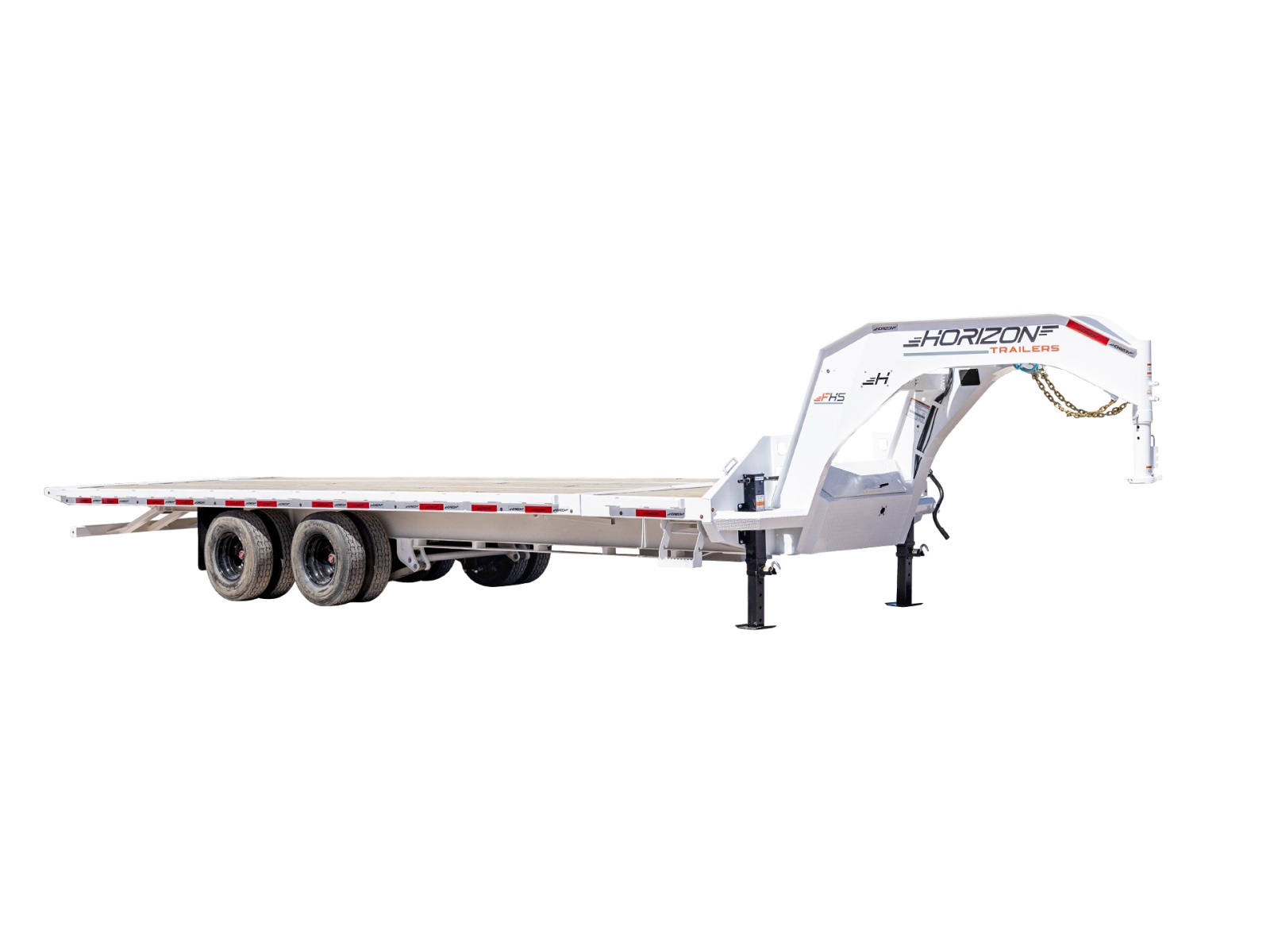

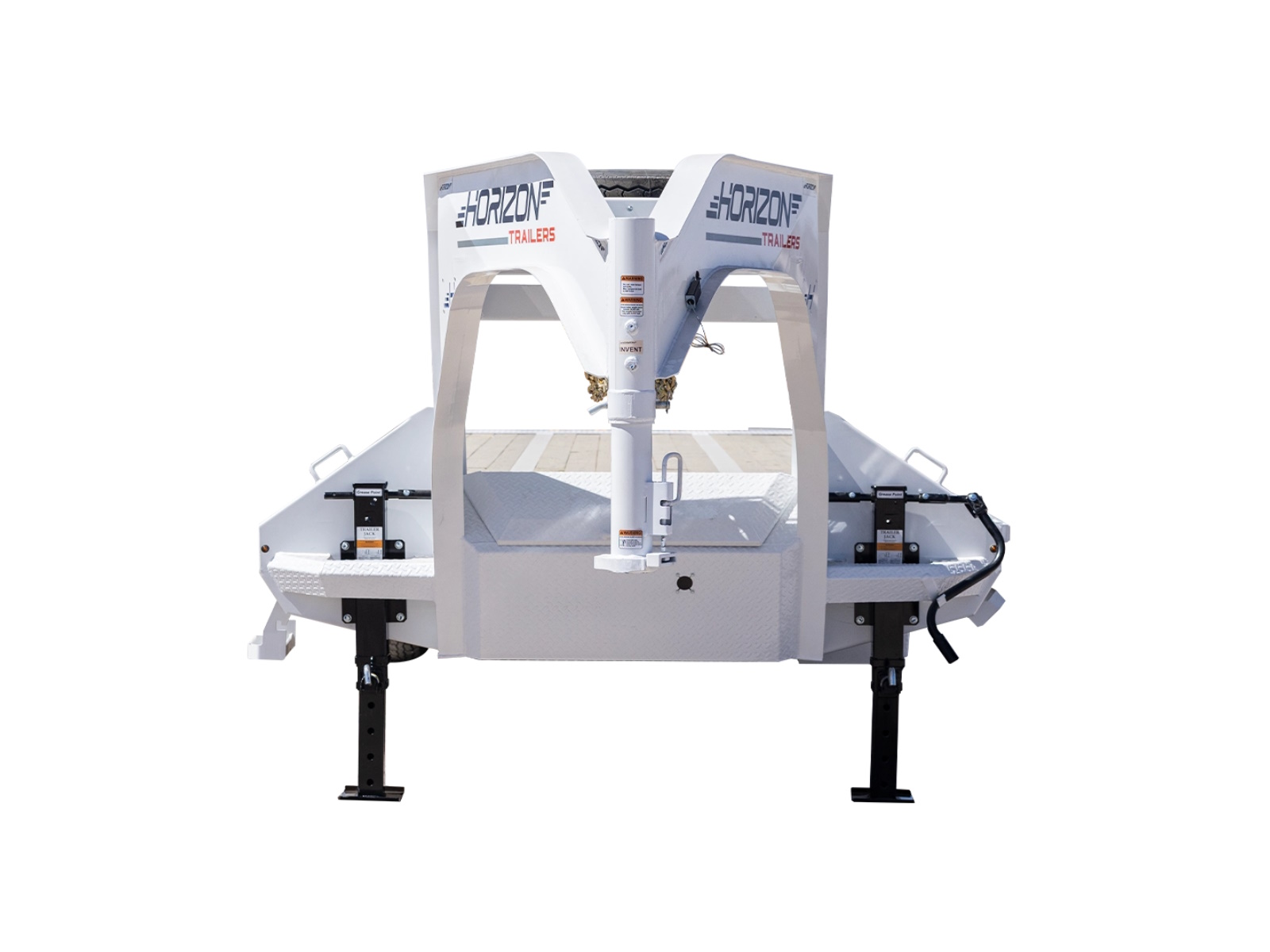

2026 Horizon FHS 30K 102 in GN 28 ft

The FHS 30K 102" GN Split Tilt Flatdeck is a rugged, versatile trailer designed for heavy-duty use. With a 30,000 lbs GVWR, this trailer offers exceptional durability, a hydraulic tilt deck, and a lockable toolbox. Available in multiple sizes, it's perfect for hauling heavy equipment with reliable safety features and superior build quality.

Built for Maximum Durability
HEAVY-DUTY CONSTRUCTION

The FHS 30K 102" GN Split Tilt Flatdeck trailer is built with a bridged 12" I-beam frame, ensuring optimal strength. With a 30,000 lbs GVWR and advanced hydraulic tilt deck, it can haul heavy loads effortlessly. The trailer includes a Mega Lockable Toolbox, safety chains, and a winch-ready setup for added convenience.

Effortless Loading and Unloading
HYDRAULIC LIFT SYSTEM

Equipped with a powerful 2-button hydraulic lift system, the FHS 30K 102" GN Split Tilt Flatdeck trailer offers easy loading and unloading. The KTI 12V hydraulic pump and wireless remote ensure a smooth operation. Its 24' hydraulic tilt deck makes transporting equipment quick and efficient, enhancing productivity for heavy-duty jobs.

Choose Your Ideal Finish
CUSTOMIZABLE COLORS AND OPTIONS

The FHS 30K 102" GN Split Tilt Flatdeck trailer is available in a wide range of colors including Military Green, Flame Orange, and Midnight Black. With multiple size options, a high-tensile steel frame, and rugged tires, this trailer is adaptable for any job. It's the ideal solution for durable and safe equipment transportation.

Features may include:

Highlights

• Bridged 12" I-Beam (22 lbs/ft)
• Neckboss 12" Engineered I-Beam
• Mega Lockable Toolbox
• Weld On Spare Tire Mount
• 2" x 6" x 7ga." Tubing Bed Frame
• SLIDE IN SIDE STEP ON BOTH SIDES
• 24' Tilt Deck

Options

Tongue

• FHS-10412k Ram 2 Speed Jacks$273.00 (USD)
• FHS-10217.5k Jost 2 Speed Jacks$1,163.50 (USD)
• FHS-10612k Hydraulic Jacks$2,665.00 (USD)
• FHS-201Locker Style Toolbox$1,449.50 (USD)
• FHS-3026" Gn Riser Increase$149.50 (USD)
• FHS-301Deck on the Neck (Flip Down Spare Tire Mount Included)$2,457.00 (USD)
• 508-0052 - D-Rings Welded Across Deck On The Neck (1/2" - 4,000 lbs)$41.60 (USD)
• 508-0064 - D-Rings Welded Across Deck On The Neck (1/2" - 4,000 lbs)$84.50 (USD)
• 503-007Shocker Hitch 2,5/16" Gn Coupler (30,000 lbs)$1,638.00 (USD)

Chassis

• FHS-20320' - 44' Deck 1 - Side Mount Undercarriage Toolbox (44"L x 17"W x 14"H)$481.00 (USD)
• FHS-21420' - 44' Deck 2 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H)$955.50 (USD)
• FHS-21530' - 44' Deck 3 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H)$1,436.50 (USD)
• FHS-21630' - 44' Deck 4 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H)$1,911.00 (USD)
• FHS-2041 - Side Mount Undercarriage Dunnage Rack (44"L x 22"W x 14"H)$481.00 (USD)
• FHS-2181 - Side Mount Undercarriage Dunnage Rack (9'L x 22"W x 14"H)$754.00 (USD)

Deck

• FHS-40212" Crossmember Spacing$15.60 (USD) per linear ft
• 506-004Deck Sides Blackwood "Classic" Rubber Infused Lumber$19.50 (USD) per linear ft
• 506-005Full Deck Blackwood "Classic" Rubber Infused Lumber$37.70 (USD) per linear ft
• FHS-411Ratchet Slide Track Left Side$20.80 (USD) per linear ft
• FHS-412Ratchet Slide Track Right Side$20.80 (USD) per linear ft
• 507-0076 - 4" Sliding Ratchets$572.00 (USD)
• 507-0088 - 4" Sliding Ratchets$767.00 (USD)
• 507-00910 - 4" Sliding Ratchets$955.50 (USD)
• 507-01012 - 4" Sliding Ratchets$1,144.00 (USD)
• 507-0116 - Weld On 4" Ratchets Right Side$572.00 (USD)
• 507-0128 - Weld On 4" Ratchets Right Side$767.00 (USD)
• 507-01310 - Weld On 4" Ratchets Right Side$955.50 (USD)
• 507-01412 - Weld On 4" Ratchets Right Side$1,144.00 (USD)
• 507-0044" x 30' Kinedyne Winch Strap with Flat Hook (5,400 lbs)$54.60 (USD) each
• 508-0014 Additional D-Rings Welded Across Deck (1/2" - 4,000 lbs)$84.50 (USD)
• 508-0026 Additional D-Rings Welded Across Deck (1/2" - 4,000 lbs)$123.50 (USD)
• 508-0038 Additional D-Rings Welded Across Deck (1/2" - 4,000 lbs)$162.50 (USD)

Lift System

• Lift system
  • 509-017Tuff Wireless 2 Button Remote (Hoist - Hydraulic Jacks)$708.50 (USD)
  • 509-020Tuff Wireless 4 Button Remote (Hoist - Winch)$858.00 (USD)
• 8 button remote option*6 buttons in use only*
  • 509-026Tuff Wireless 8 Button Remote (Hoist - Hydraulic Jacks - Winch)$1,254.50 (USD)
  • 504-01213.5k Steel Cable Winchmax Winch$1,774.50 (USD)
  • 504-01313.5k Synthetic Rope Winchmax Winch$2,047.50 (USD)
  • 504-01417.5k Steel Cable Winchmax Winch$2,255.50 (USD)
  • 504-01517.5k Synthetic Rope Winchmax Winch$2,938.00 (USD)
  • 504-01620k Steel Cable Winchmax Winch$2,834.00 (USD)
  • 504-01720k Synthetic Rope Winchmax Winch$3,445.00 (USD)

Running Gear

• Brakes upgrade option
  • 501-2072 - 16k Elec / Hydraulic Disc Brake Dual Oil Bath Axles w/ Hydrastar CAM$5,187.00 (USD)
• Ridewell air ride suspension upgrade/ axle options
  • 500-210Standard Axles w/ Air Ride Suspension$9,964.50 (USD)
  • 500-2182 - 16k Elec / Hydraulic Disc Brake Dual Oil Bath Axles w/ Hydrastar CAM w/ Air Ride Suspension$15,151.50 (USD)
• Lift axle ridewell air ride upgrade/ axles options
  • 500-211Standard Axles w/ Air Ride Suspension w/ 1 Lift Axle$10,920.00 (USD)
  • 500-2202 - 16k Elec / Hydraulic Disc Brake Dual Oil Bath Axles w/ Hydrastar CAM w/ Air Ride Suspension w/ 1 Lift Axle$16,107.00 (USD)
• Spare tire options
  • 501-114ST235/75R17.5 18 Ply Tire (5,675 lbs)$409.50 (USD)

Electrical and Lighting

• 505-00110 Watt Solar Panel$481.00 (USD)
• FHS-3052 - Cargo Lights Mounted On Riser$546.00 (USD)

Finish

• FHS-81520ft & Up Zinc Primer Undercoat$1,365.00 (USD)
• FHS-821Side Mount Undercarriage Toolboxes Painted Black$273.00 (USD) per toolbox
• FHS-823Side Mount Undercarriage Dunnage Racks Painted Black$344.50 (USD) per rack
