16,000 lbs

3,900 lbs

12,100 lbs

Dual 8,000 lb Direct Lube 8 lug (electric brakes on both axles)

Heavy Duty Slipper Spring Suspension

All wheel electric brakes on all axles (12" x 2" brake shoe)

New 16" ST235/85R16 14ply radial LRG (4,000 lbs ea)

16” eight hole silver or white mod

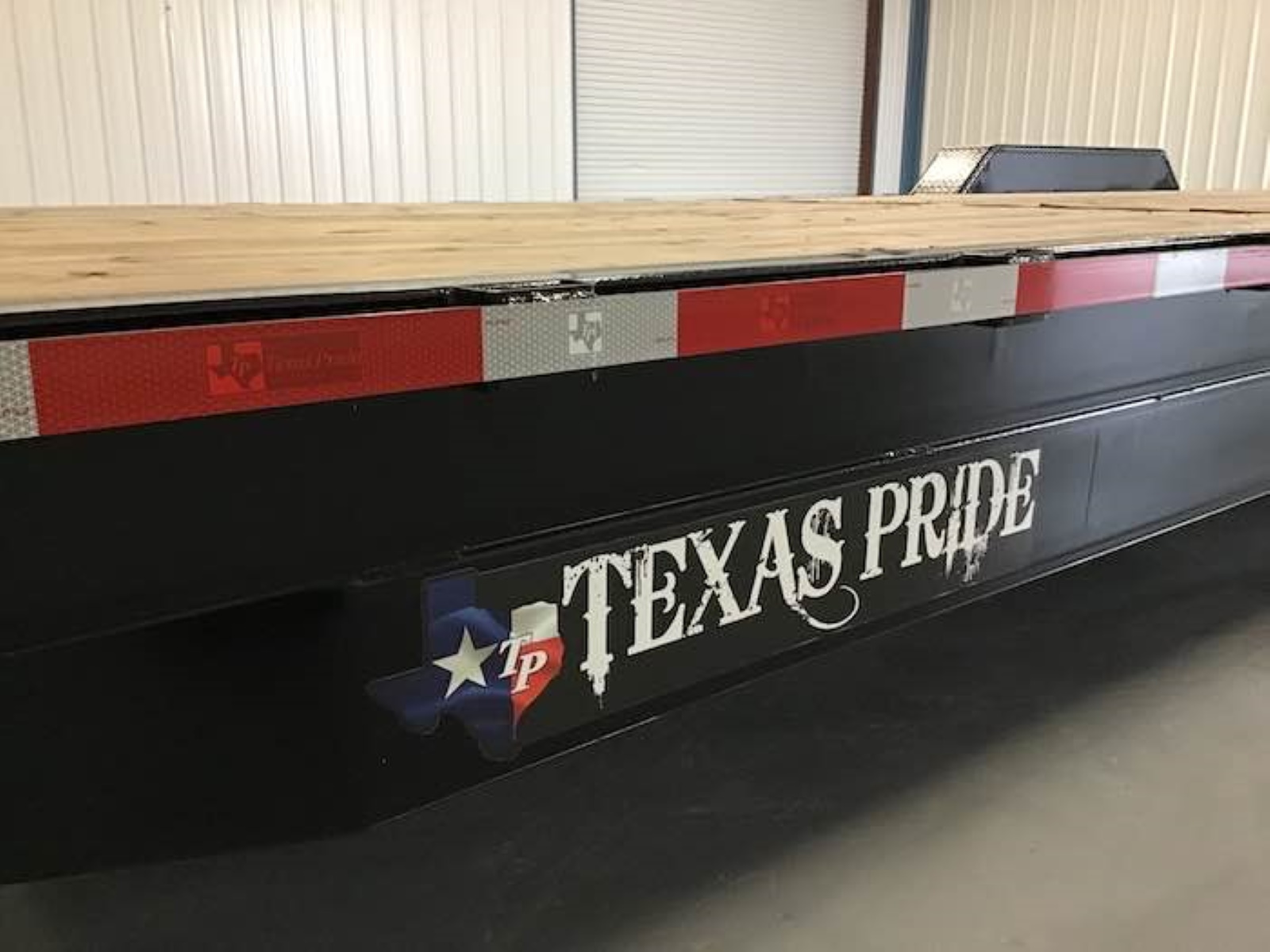

6" Channel on 21' - 25' deck length, 8" Channel on 27' - 31' deck length

6" Channel on 21' - 25' deck length, 8" Channel on 27' - 31' deck length (wrap-around to the axles)

3” channel on 16” centers

102” outside fender to outside fender

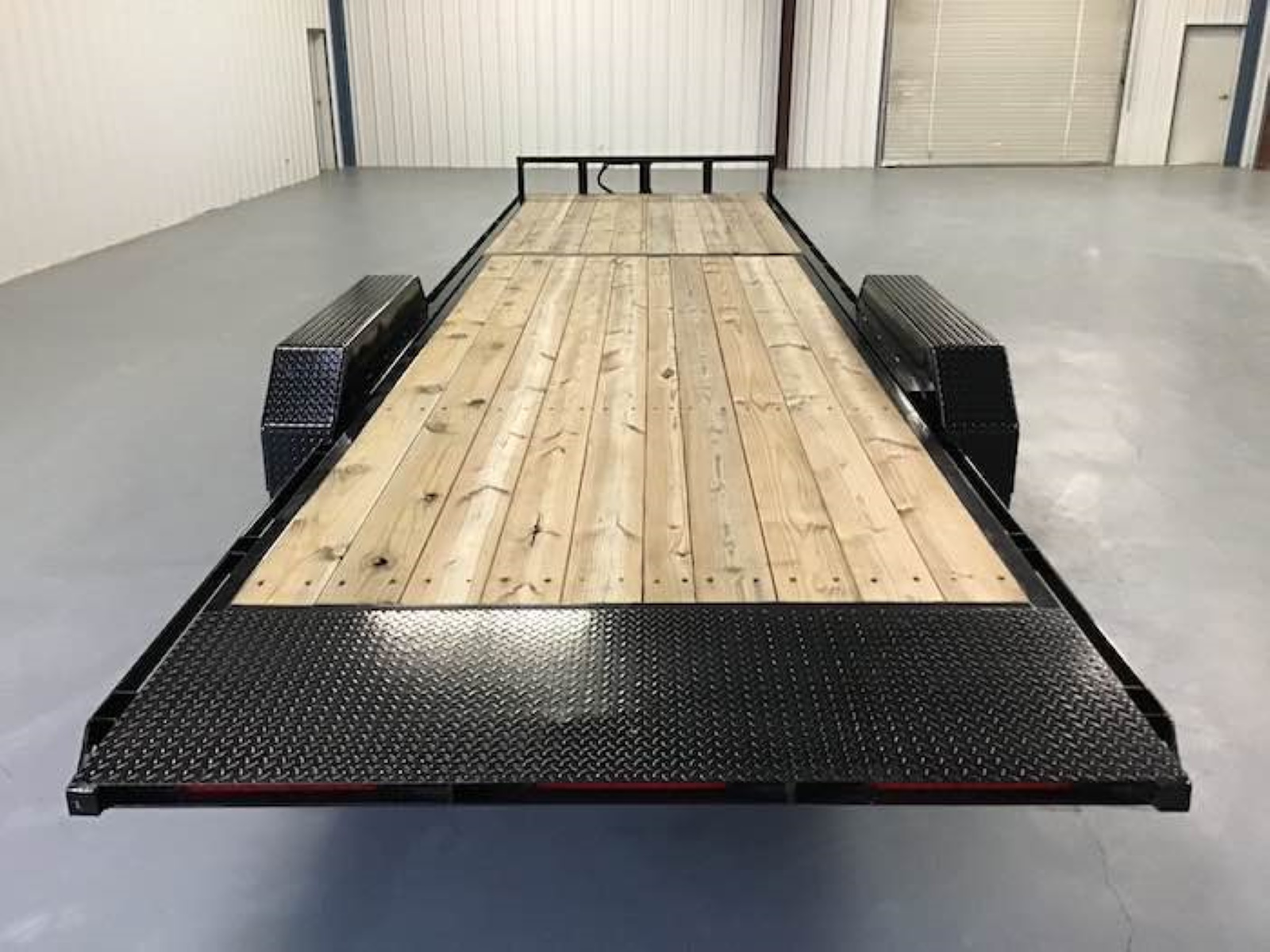

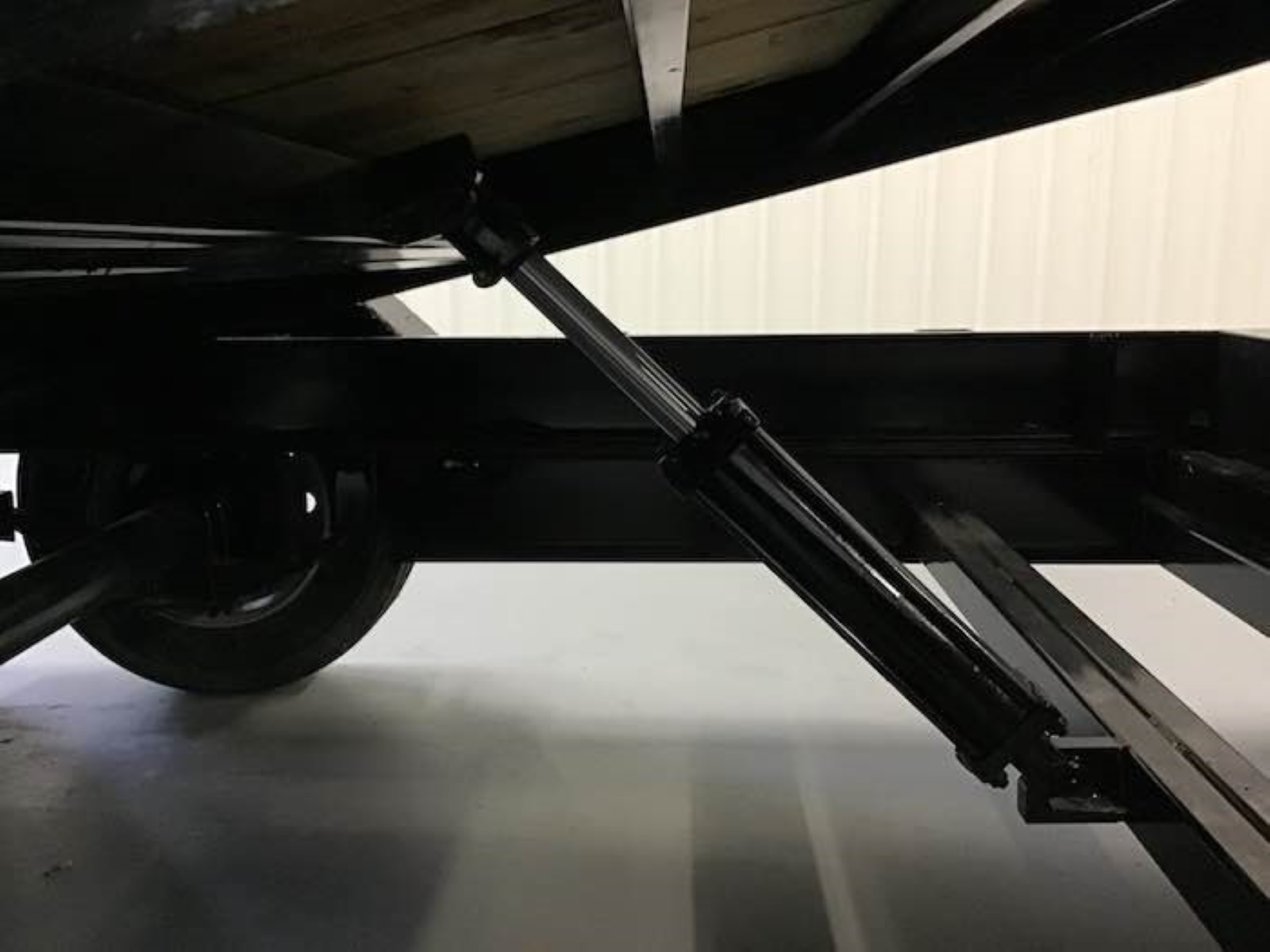

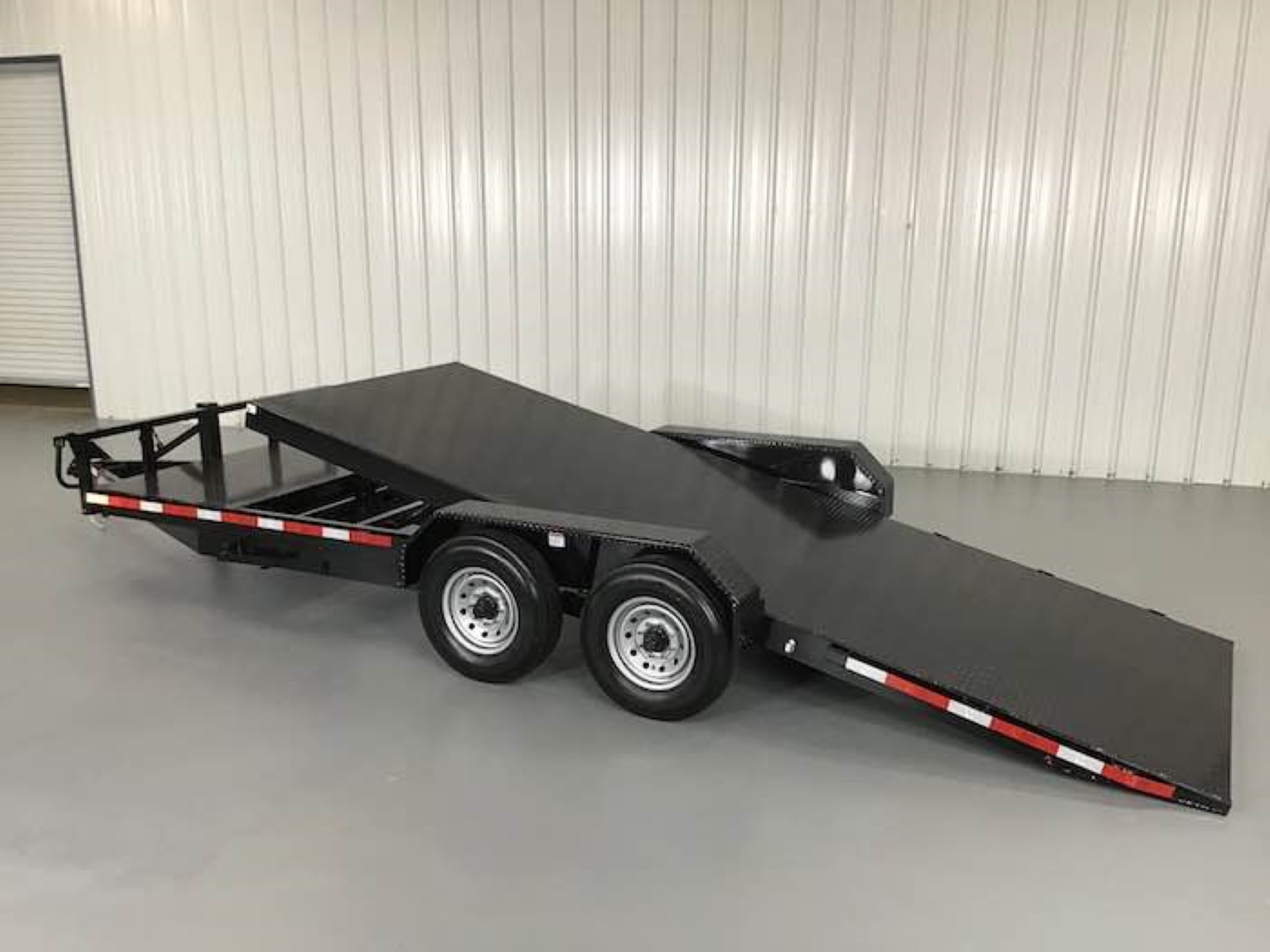

17' tilt deck - balance stationary deck

Approximate 27" - 33"

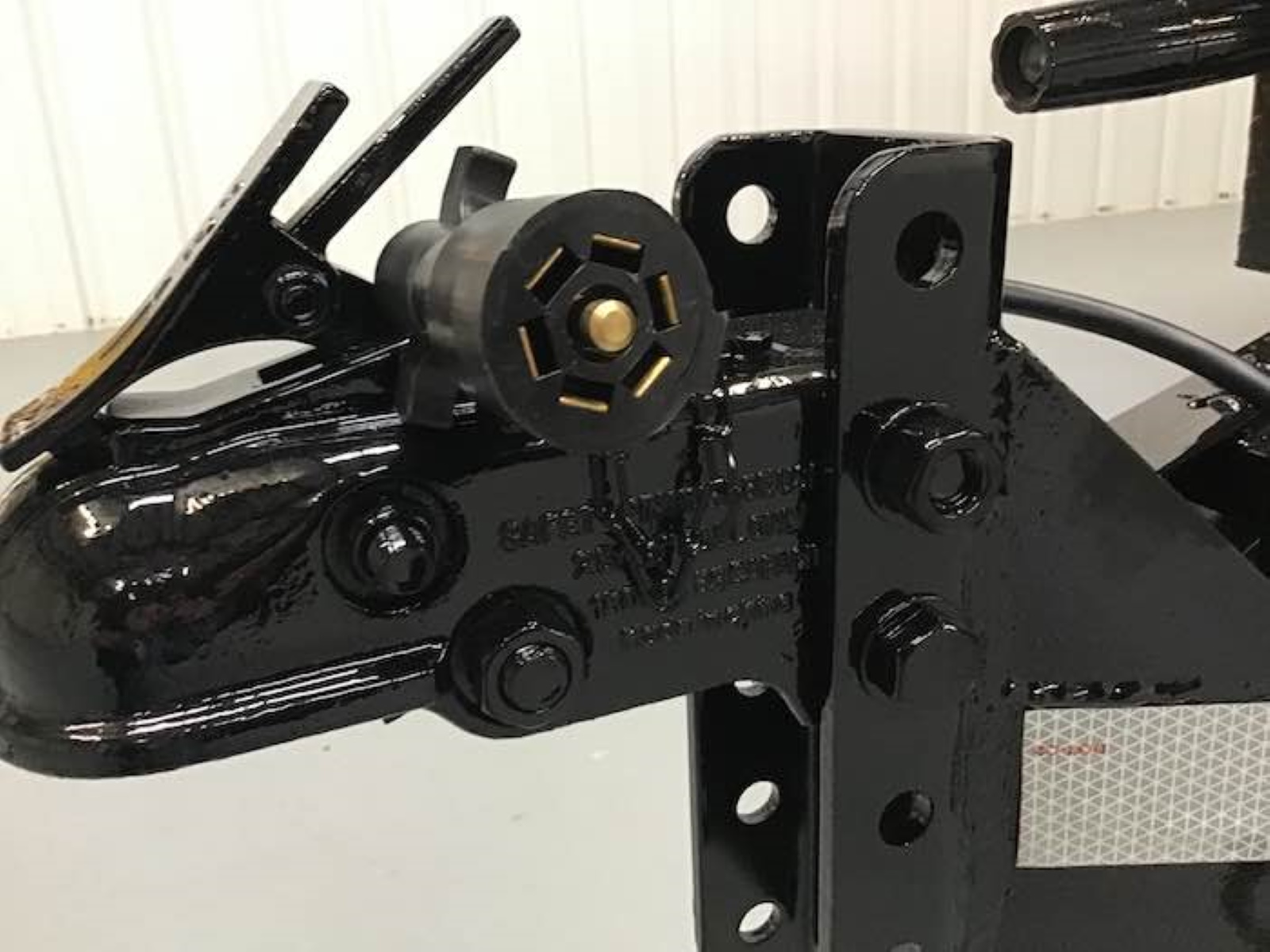

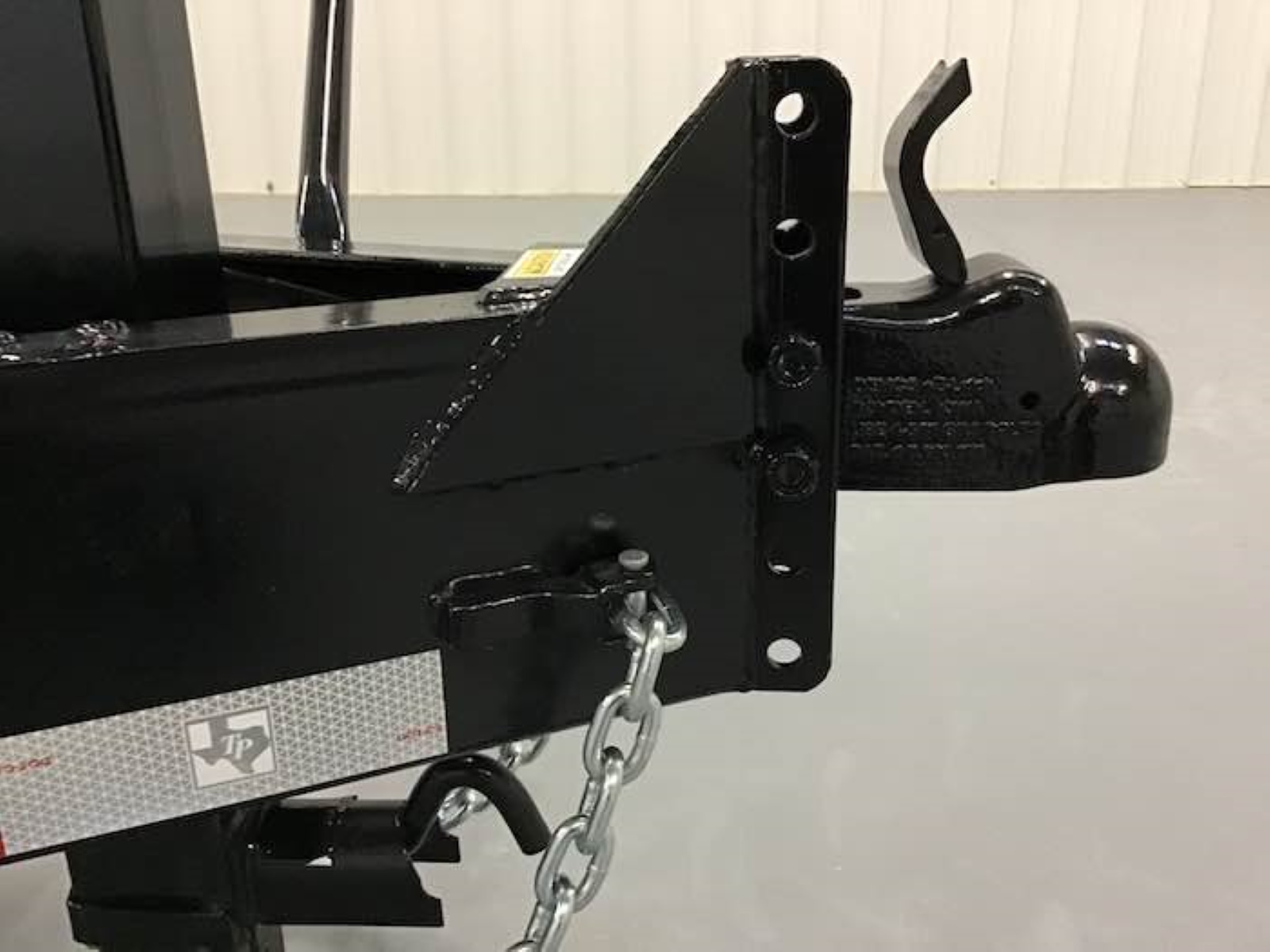

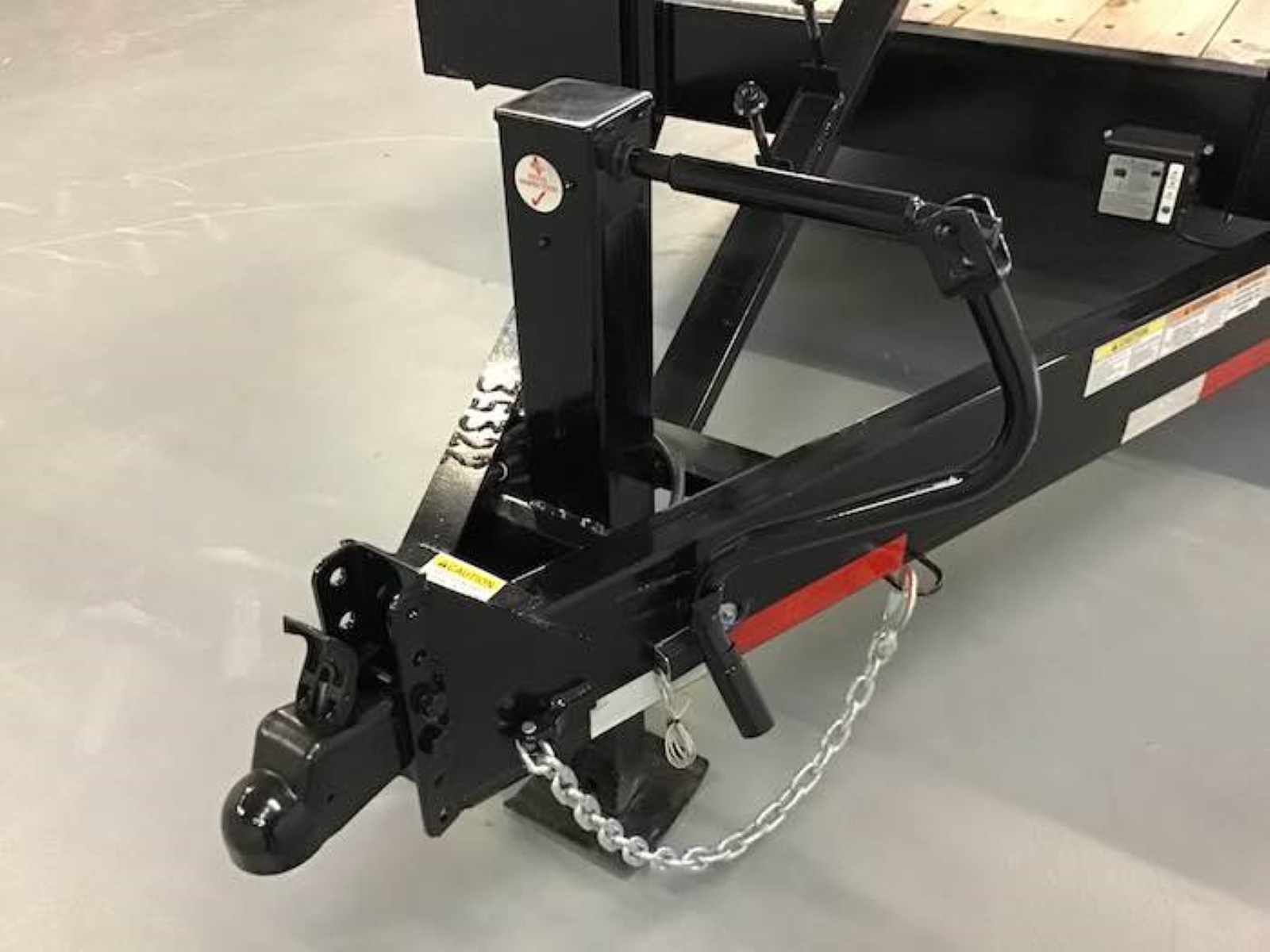

4 hole adjustable height 2 5/16” ball

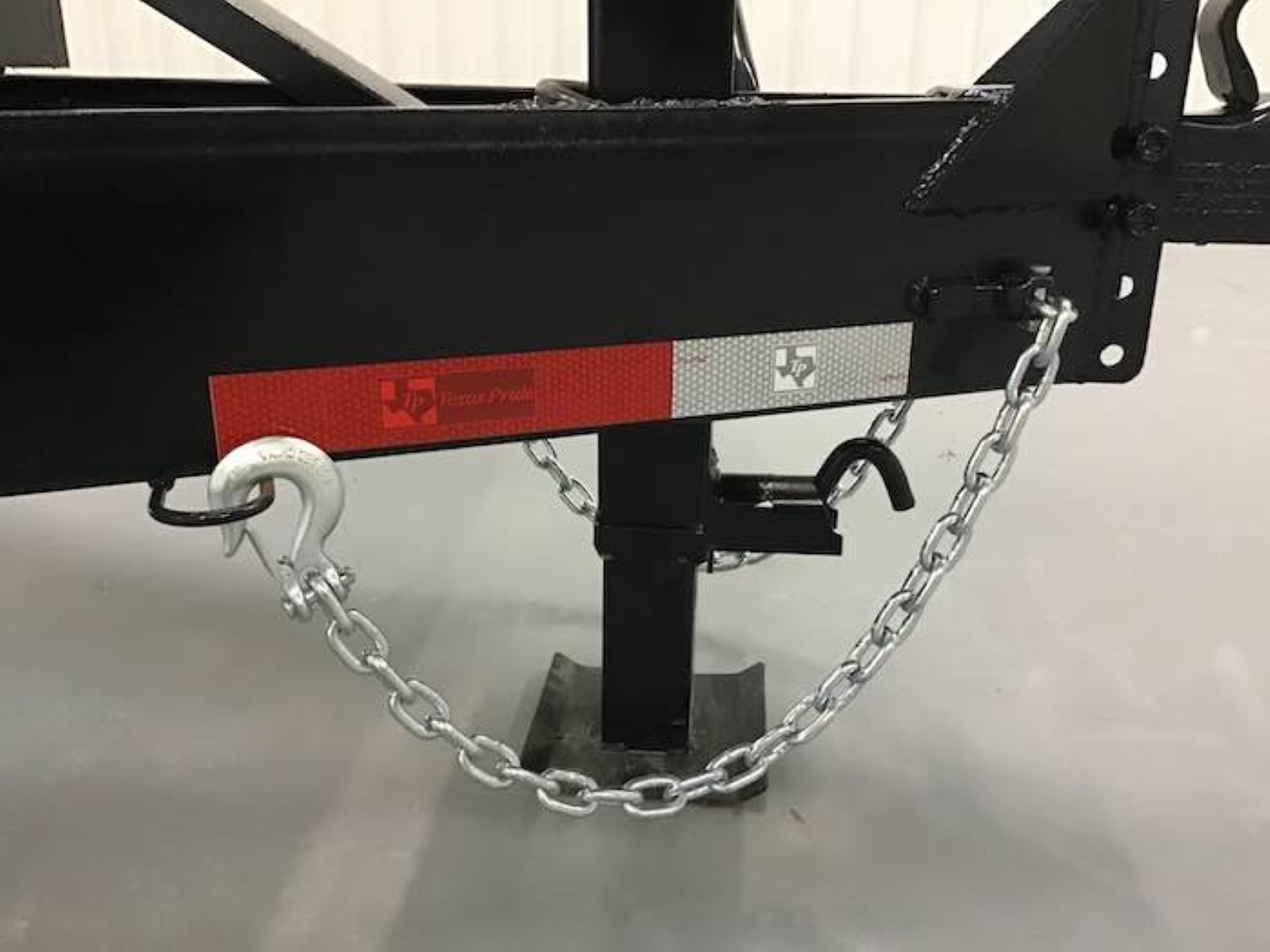

Two heavy duty safety chains

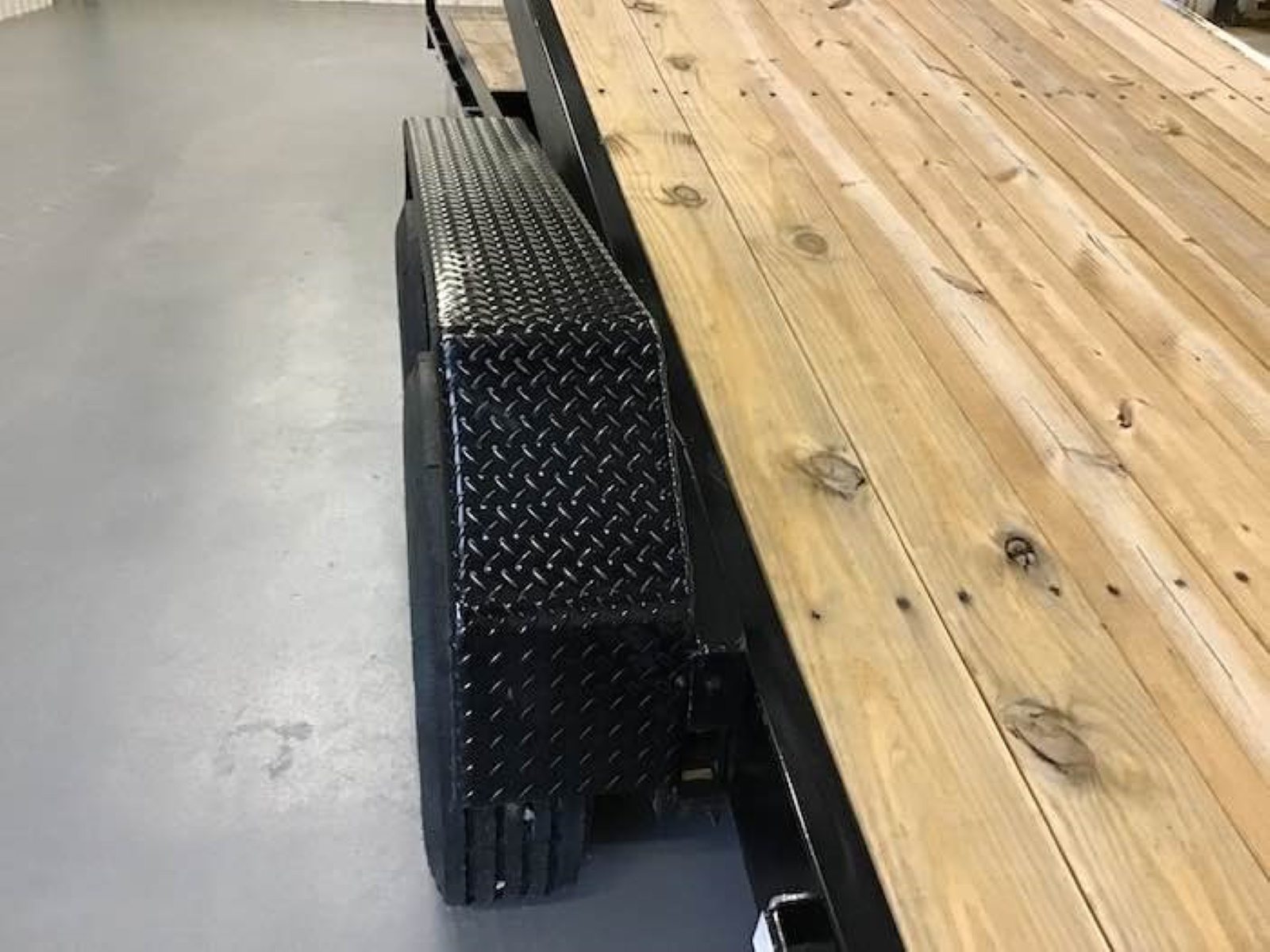

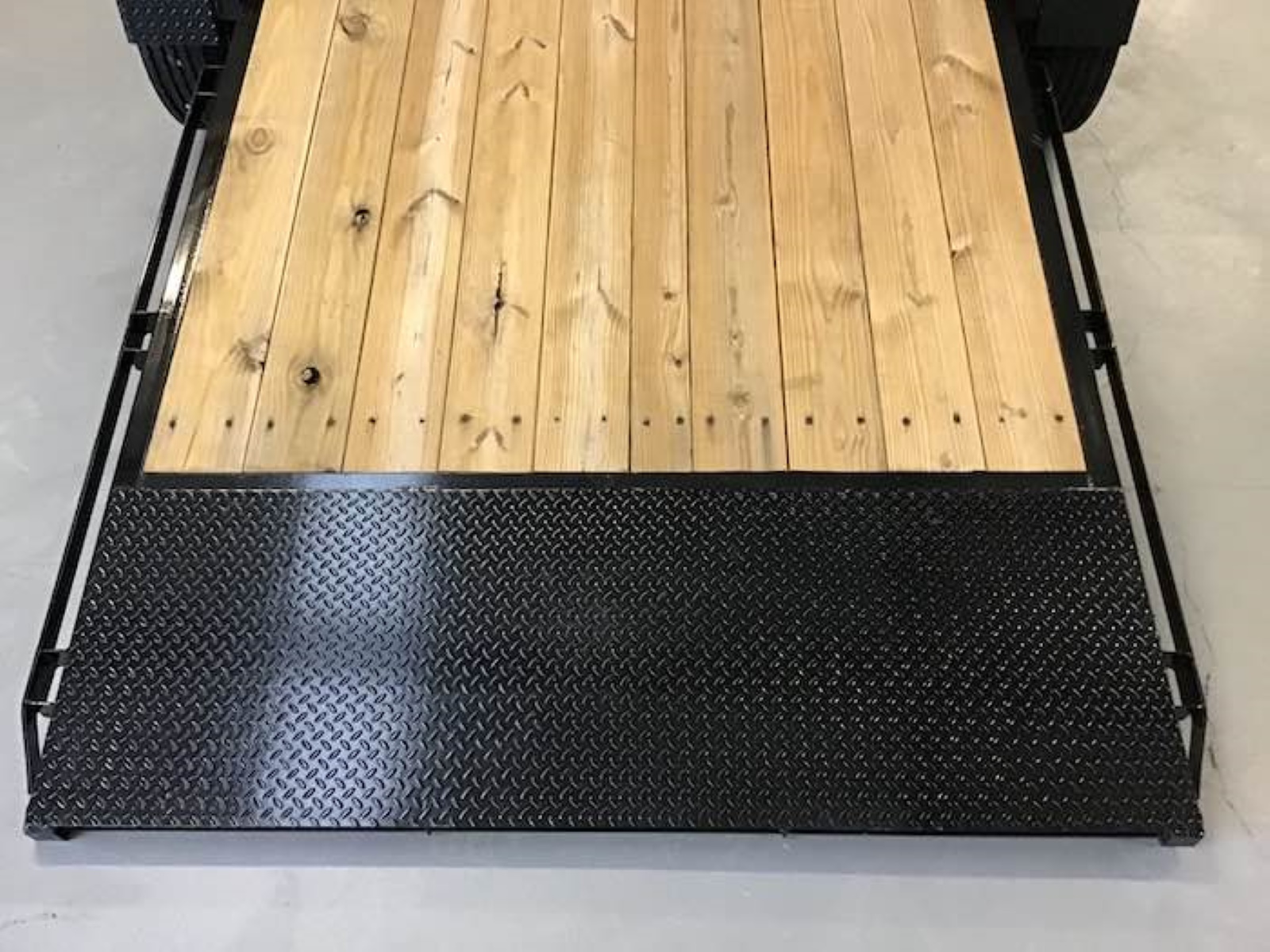

Heavy duty 14 gauge tread plate (reinforced)

All flush mount or recessed lifetime LED stop / turn / clearance lighting

Fully primed and painted with automotive grade acrylic enamel

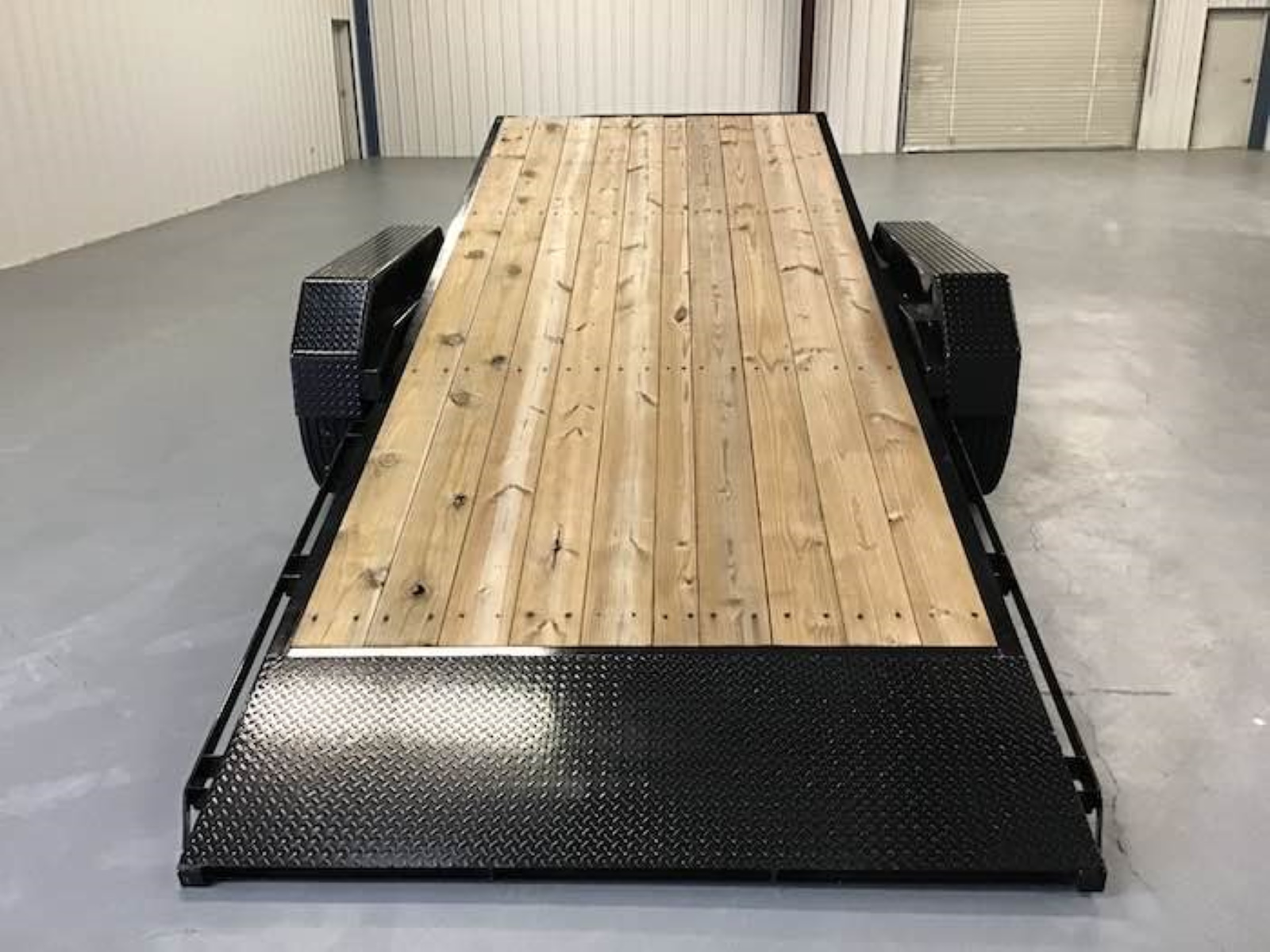

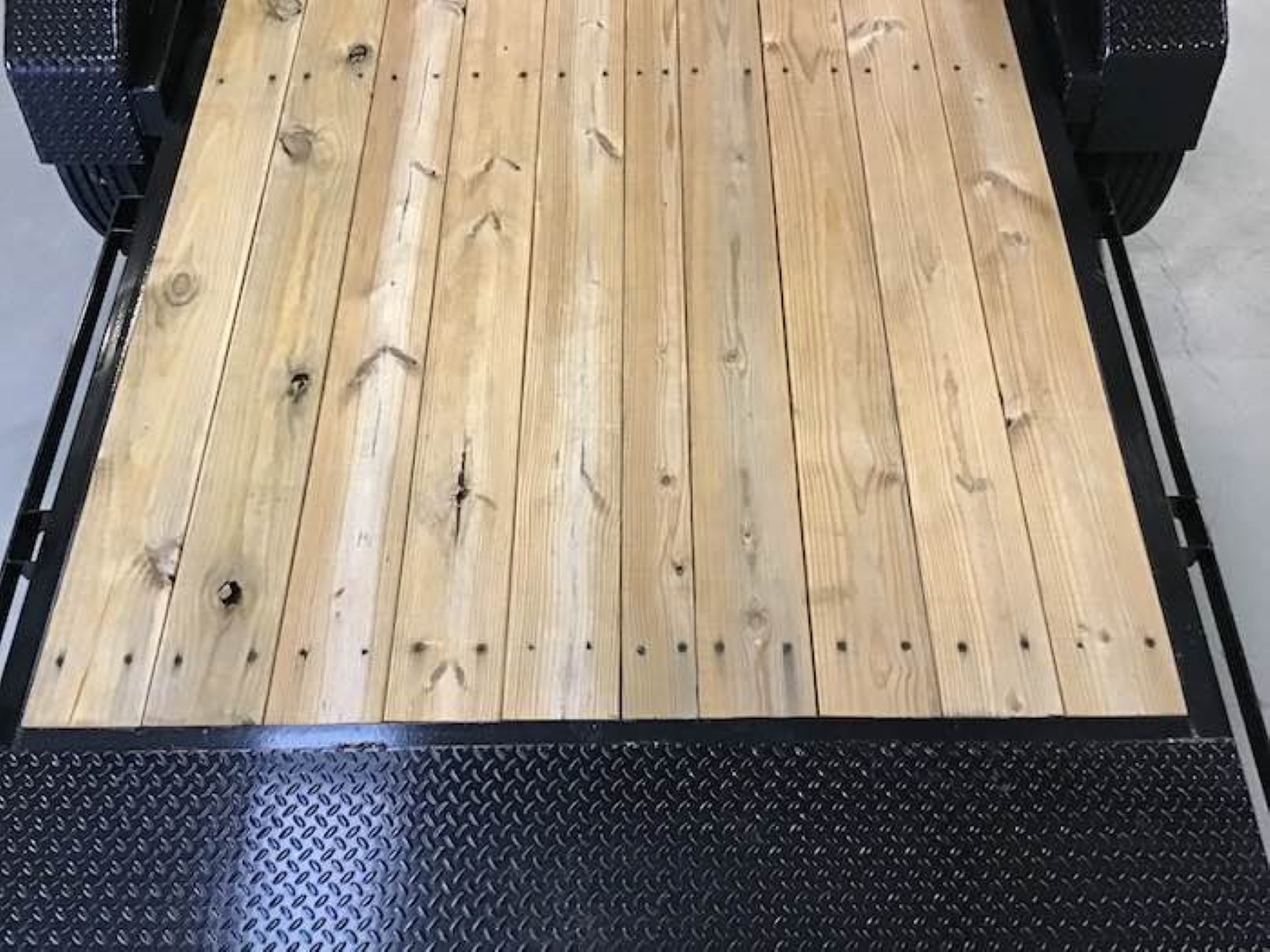

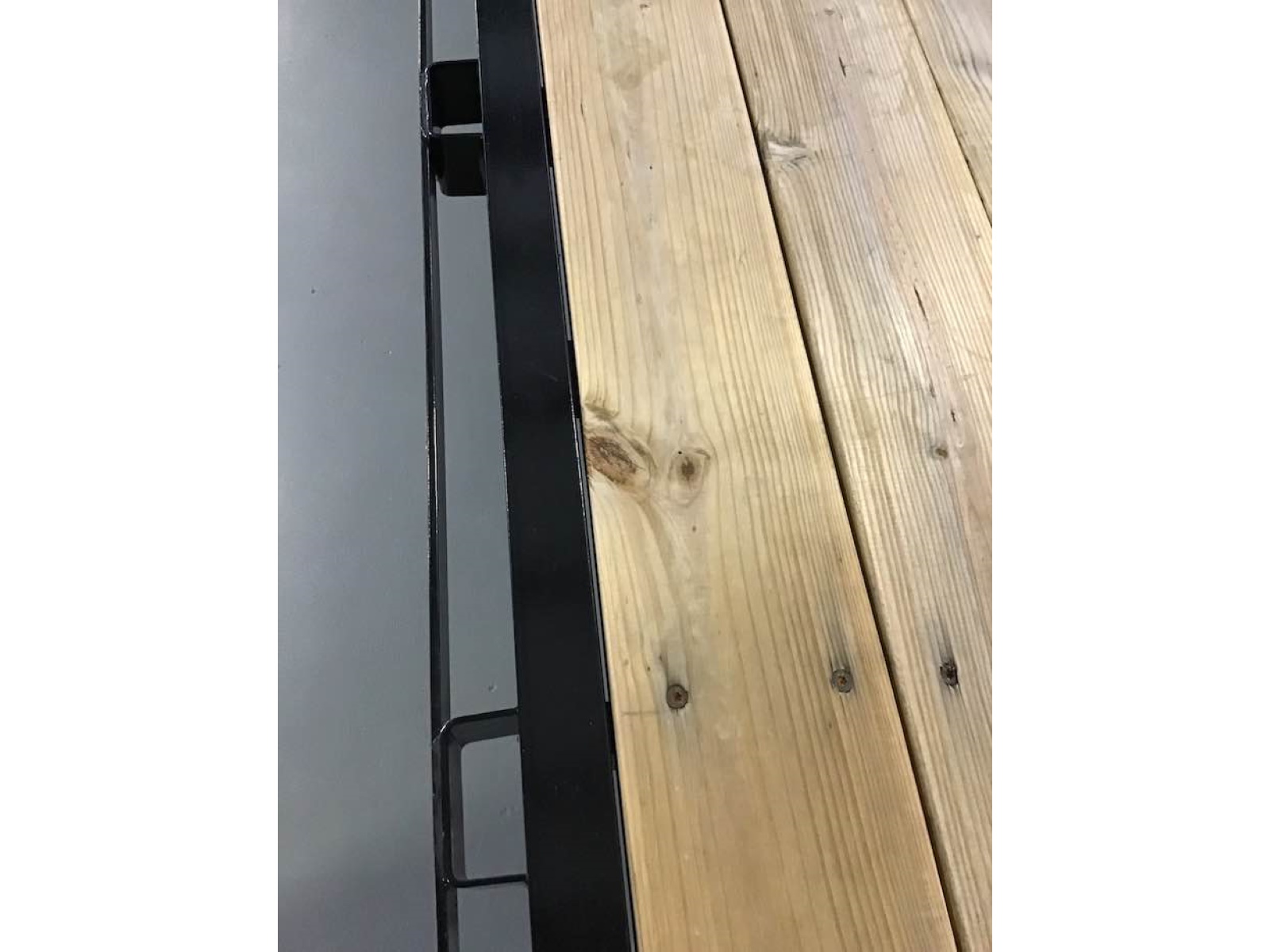

2” pressure treated pine (screwed down) or 1/8” diamond plate
